Description
Navistar ServiceMaxx J1939 v44.24+J1708 v43.26+KG+Instruction
ServiceMaxx J1939 v44.24
ServiceMaxxJ1708 v43.26
Include how to install guide
With KG
Note:After payment,you will get download link on page,if you can not get download link,please contact autoepccatalog@outlook.com

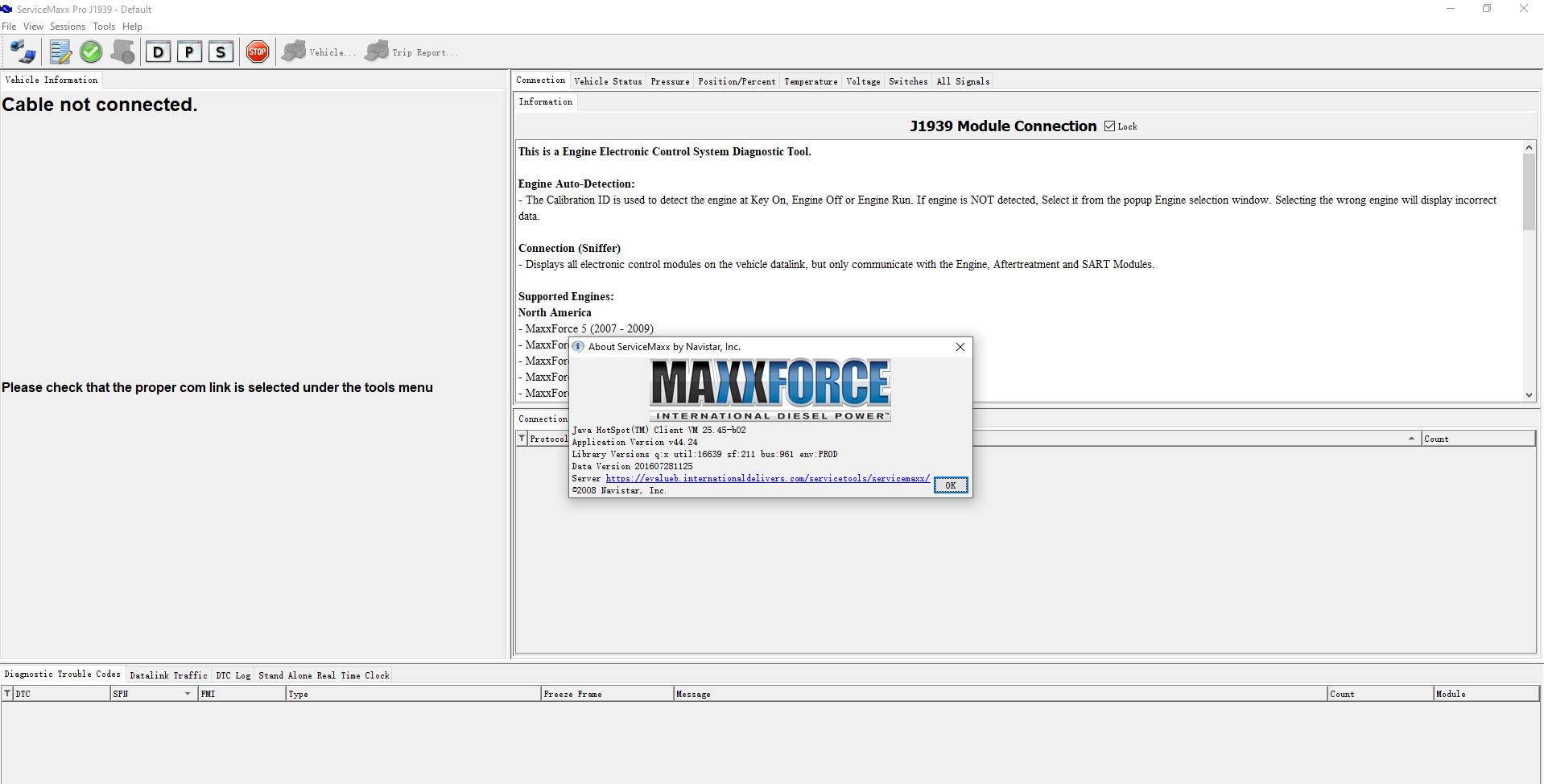

ServiceMaxx J1939 Engine Electronic Control System Diagnostic Tool
ServiceMaxx J1939 Engine Auto-Detection:
– The Calibration ID is used to detect the engine at Key On, Engine Off or Engine Run. If engine is NOT detected, Select it from the popup Engine selection window. Selecting the wrong engine will display incorrect data.
ServiceMaxx J1939 Connection (Sniffer)
– Displays all electronic control modules on the vehicle datalink, but only communicate with the Engine, Aftertreatment and SART Modules.
ServiceMaxx J1939 Supported Engines:
North America
– MaxxForce 5 (2007 – 2009)
– MaxxForce 7 (2007 – 2009)
– MaxxForce 7 (2010 – 2012)
– MaxxForce 7 (2013 – )
– MaxxForce DT, 9 & 10 (2007 – 2009)
– MaxxForce DT, 9 & 10 (2010 – 2012)
– MaxxForce DT, 9 & 10 (2013)
– MaxxForce 11/13 (2008 – 2009)
– MaxxForce 11/13 (2010 – 2012)
– MaxxForce 11/13 (2013 – 2013.5)
– MaxxForce 15 (2010 – 2013)
SCR Engines
– N9/N10 SCR (2014 – )
– N13 SCR (2013 – 2014)
– N13 SCR (2015 – )
Supported Engineering Access Engines:
North America
– B786: N13 (2017 – )
Military Engines
– Mil13: MaxxForce 12.4D
CAT Engines:
– CT11: CAT CT11/13 (2010-12)
– CT764: CAT CT13 (2013)
– CT15: CAT CT15
– CT718: CAT CT13 SCR (2013-2014)
– CT745: CAT CT13 SCR (2015 – )
Global Engines:
– I341: DLCII I6 Export (2007 – )
– I716: N13 (Euro V)
– MWM: MaxxForce 3.0H (Euro III – P418V50)
– MWM: MaxxForce 7.2/4.8 H (Euro III – P625V13)
– MWM: MaxxForce 7.2/4.8 H (Euro IV – P800V24)
– MWM: MaxxForce 7.2/4.8 H (Euro IV – P800V32)
– MWM: MaxxForce 7.2/4.8 H (Euro V – P1090V52)
– MWM: MaxxForce 3.2 H (Euro III)
– MWM: MaxxForce 3.2 H (Euro IV)
– MWM: MaxxForce 3.2 H (Euro V)
ServiceMaxx J1708 Engine Electronic Control System Diagnostic Tool
ServiceMaxx J1708 Engine Auto-Detection:
The Engine Serial Number is used to detect the engine at Key On, Engine Off. If engine is NOT detected, Select it from the popup Engine selection window. Selecting the wrong engine will display incorrect data.
ServiceMaxx J1708 Connection (Sniffer)
– Displays all electronic control modules on the vehicle datalink, but only communicate with the Engine Control Module.
ServiceMaxx J1708 Supported
Pre-MaxxForce Engines:
– 3 Box I6 (1994 – 1997)
– 3 Box V8 (1994 – 1997)
– DLC I6 (1998 – 2004)
– DLC V8 (1998 – 2004)
– DLCII V6 (2005 – 2006)
– DLCII I6 (2005 – 2006)
– DLCII V8 (2005 – 2006)
