WABCO TOOLBOX 14.2 & ECAS CAN2 – ABS And Hydraulic Power Brake (HPB) Diagnostics Software.WABCO TOOLBOX 13 is the Latest Dealer Diagnostics Software For All WABCO ABS And HPB Modules
Note:After payment you will get download link,and if you can not get it,please contact autoepccatalog@outlook.com
WABCO TOOLBOX+ECAS CAN2 Features:
Version:14.2
OS Requirements:Win7,Win8 and WIN10
Languages:English
Price only for One PC installation and activation
WABCO TOOLBOX+ECAS CAN2 Functions:
Pneumatic ABS
Trailer RSS Plus
Hydraulic ABS
Hydraulic Power Brake (HPB)
Electronic leveling valves for tractors
Electronic leveling valves for trailers
Electronically Controlled Air Suspensions (ECAS) for buses
OnGuard TM Collision Safety Systems.
WABCO TOOLBOX+ECAS CAN2 Benefits:
– Displays both static (e.g., ECU number) and dynamic (e.g., RPMs) information from the system under test
– Displays both active and stored system faults, as well as the appropriate repair instructions
– Activates system components to verify system integrity, correct component operation and installation wiring.
WABCO TOOLBOX+ECAS CAN2 New Features:
J1939 diagnostics for pneumatic ABS
J1939 diagnostics for ECAS
Next Generation OnGuard Radar Diagnostics
OnLane Lane Departure Warning Diagnostics
J1939 bus monitor availability in main menu
Fault descriptions and data appear in web browser with links to further information
Legacy J1708 TOOLBOX still available for diagnostics
Automated emails and messages communicating availability of software updates and upgrades
Wabco TOOLBOX 14.2 System Installation Service
WABCO TOOLBOX Diagnostic Software Release Notes
13.6 (Feb 2022)
1.) mBSP and SmartTrac HABS – Updated html help files
2.) Updated WCCC e-mail address to wabconacustomercare@zf.com
3.) AMP for E8/mBSP/OnLane2/SmartTrac HABS – Added additional allowable replacement P/Ns
4.) iABS – Added Service Interval, added override switch to Lift Axle, allow VIN of 1-17 digits
5.) Updated registration component
13.5 (Aug 2021)
1.) mBSP – Added additional addresses to Parameter Save
2.) mBSP AMP – Added R2101 Part Numbers
3.) EBS – ESC end-of-line added
4.) iABS – Axle load monitoring updates, Pull Trailer, Brake Pad Wear, e/f allowed on Lift Axle, VIN save
5.) OnLane – TOOLBOX determines if OnLane1 or OnLane2 is connected and invokes the correct diagnostic program
6.) Updated registration component
13.4 (Apr 2021)
1.) mBSP – Added additional addresses to Parameter Save
2.) mBSP AMP – Added R2001 Part Numbers
3.) SmartTrac HABS AMP – Added additional Part Numbers
13.3 (Feb 2021)
1.) iABS – 2S/2M Sensor Orientation Test update
2.) RSS – TailGuard now works in conjunction with Auto Lift Axle
13.2 (Dec 2020)
1.) Aftermarket Programmers – Added more part numbers to E4, E8 and SmartTrac HABS AMPs
2.) RSS – TailGuard added to the GIO list
3.) Updated registration component
13.1 (Oct 2020)
1.) OnLane – Updated to work with C9.2.2 (diagnostics and Aftermarket Programmer)
2.) SmartTrac HABS – Added occurrence counts to DTC screen
3.) Aftermarket Programmers – updated issue reading VIN; Added new P/Ns
4.) iABS – Added lamp type to Tag Axle
13.0 (May 2020)
1.) TailGuard Diagnostics – new
2.) iABS Diagnostics – new
3.) New user interface
4.) Warranty Submission Form – OnGuard, E8, mBSP
12.12 (Oct 2019)
1.) E4 Aftermarket Programmer – updated B20 error for Basic ECUs
2.) SmartTrac Hydraulic Aftermarket Programmer – Added XBR checksum calculation for ESC ECUs
3.) ABS+ Aftermarket Programmer – Added Parameters 0412-0415
4.) E8 Aftermarket Programmer – Added E8.14 capability
12.11 (Oct 2019)
1.) Internal release
12.10 (Sept 2019)
1.) New file folder structure
2.) SmartTrac Hydraulic – HTML files added for ESC fault codes
3.) J1708 ECAS calibration update
4.) Extra addresses added to Save Parameters for E8.14
12.9 (15 May 2019)
1.) OnGuard – ECR3
2.) OnLane ALERT – Workshop alignment and save parameters added
3.) OnLane ALERT Aftermarket Programmer – New
4.) SmartTrac Hydraulic Aftermarket Programmer – Minor updates
5.) SmartTrac Hydraulic – Additional addresses added to save parameters; ESC learning status update
6.) SmartTrac Hydraulic Maintenance Manual – Updated
7.) E4 Aftermarket Programmer – E4.9 updates
12.8 (29 Jan 2019)
1.) mBSP – Corrected active/stored fault designation
2.) OnLane ALERT – Updated part number display
12.7 (13 Nov 2018)

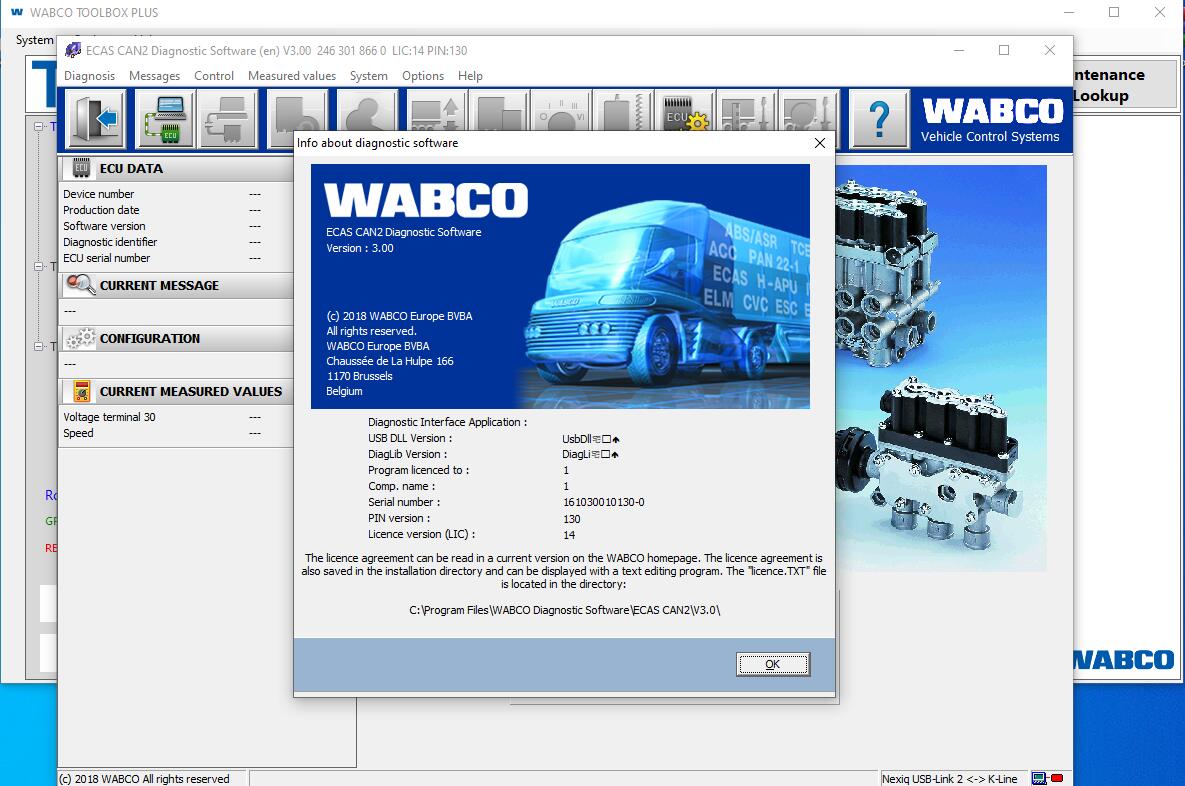

1.) ECAS CAN 2 – Updated to version 3.0
2.) OnGuard – Updated service alignment
3.) RSS – SafeStart Alarm function added
4.) SmartTrac Hydraulic Aftermarket Programmer – Updated for ESC
5.) TCS II – SafeStart Alarm function added
6.) SmartTrac PABS (mBSP) – Minor updates to wheel speed display
7.) OnSide – Read/clear stored faults; added Comp Id, S/W Id, ECU Id
12.6 (5 Dec 2017)
1.) SmartTrac PABS (mBSP) Aftermarket Programming update
12.5 (3 Nov 2017)
1.) OnLane 2 Diagnositcs – New
2.) OnGuard – Minor update to EEPROM save
3.) RSS – Door Ajar GIO added; Auto Lift Axle update
4.) SmartTrac Hydraulic Maintenance Manual – New
5.) TCS II – Updated AutoTail.tio file
6.) SmartTrac PABS (mBSP) – Minor updates; Maintenance Manual – New
7.) Aftermarket Programming (E44b, E8, mBSP) – Minor updates
8.) E8 PABS – Changed ESC EOL instructions to account for ESC lamp
12.4 (2 May 2017)
1.) SmartTrac Hydraulic Aftermarket Programming – New
2.) RSS – Added Smart Brake Interlock
3.) TCS II – Added Auto Tail and Tire Inflation/Door Ajar .tio files
4.) Updated AMProg (PABS, HABS) unhandled exception on 32-bit operating systems
5.) E8 – E8.13 ESC lamp functionality added
6.) OnGuard – Added ECR2 and FTEN; added ECR1 Decoder
7.) OnLane – Minor update to work with 500k on a gateway
8.) SmartTrac PABS, Blind Spot, EBS – minor upgrades
12.3 (30 Nov 2016)
1.) SmartTrac PABS – New
2.) SmartTrac Hydraulic – New
3.) Blind Spot Detection – New
4.) Aftermarket Programming for J1939 SmartTrac PABS – New
5.) Updates to Aftermarket Programming for J1939 E44b and E8
6.) Updated maintenance manuals for Trailer RSS and E8 PABS

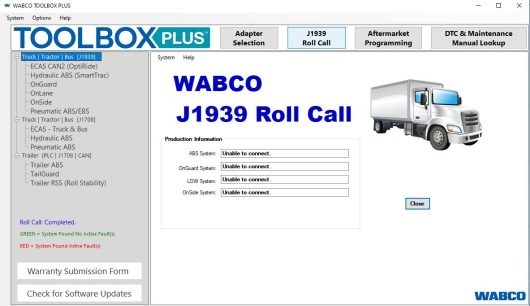

7.) Roll Call feature added to Utility menu
12.2 (2 May 2016)
1.) Aftermarket Programming for J1939 E8 PABS – New
2.) Updates to Aftermarket Programming for J1939 E44b
3.) TCS II GIO Configuration Menu, including Trailer Tail and Trailer Length and Height Communication – New
4.) Updated help files for E8, OnGuard and HPB
5.) Updated maintenance manual for OnGuard
12.1 (7 Dec 2015)
1.) Corrected registration issue with TOOLBOX 12 Upgrade
12.0 (23 Nov 2015)
1.) Diagnostics for J1939 E8 PABS (including EAP) – New
2.) Diagnostics for EBS – New
3.) OnGuard diagnostics now compatible with OnGuard ACTIVE
4.) DTC and Maintenance Manual Lookup – New
5.) Updated maintenance manual for OnGuard
11.5 (17 July 2015)
1.) Aftermarket Programming of E44b ECUs
2.) RSS Configuration integrated back into the RSS Main program
3.) RSS parameter screens cleaned up, EOL test made more robust, Lift Axle GIO updated
4.) TCS II Lift Axle GIO updated, new Tire Calibration, new HTML help files
5.) Updated maintenance manuals for HPB, HABS-E, PABS-E and ECAS CAN2
11.4 (24 April 2015)
1.) Added Extended DTC Info, HTML help and Data Decoding to OnGuard
2.) Added Odometer Reading to OnLane Video
3.) ECAS CAN2 v2.25 with Lift Axle
4.) HTML help added to OnLane
11.2 (16 December 2013)
1.) ECAS CAN2 Diagnostic Software updated to version 2.20 with support for new 24V bus ECU
2.) PIN-less ECAS CAN2 Calibration capability added for 12V systems (trucks)
11.1 (16 September 2013)
1.) OnLane Video Extraction capability now available in OnLane LDW menu
2.) Registration information now available for viewing in Utilities menu
3.) Ability to transfer/deactivate software license now available in Utilities menu
