Description

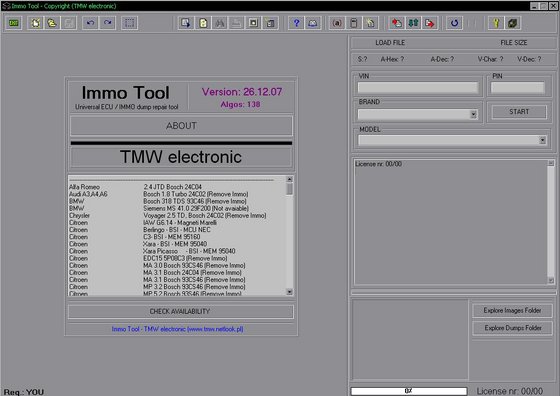

IMMO TOOL V 26.12.07.is a smart Software for: IMMO OFF / ECU Repair / PIN Calc / PIN Prog / IMMO Prog,many vehicles made/models.
How To Use IMMO TOOL V 26.12.07 ?
– Use any serial programmer to read memory from ECU, or immo box or from both.
– Save the bin files, and select the correct car made/model from the drop down menu, open up the saved dump file, and follow the shown instructions then push START.
ALFA ROMEO:
1. Repair ECU, Remove Immo – BOSCH Twin Spark (Alfa Model 156), BOSCH 0 261 204 772 – 24C02 memory
2. Repair ECU – BOSCH JTD 2.4 5 plugs 24C04 memory
AUDI:
1. Audi A2 – PIN decoder loaded 93C86-16
2. ECU – Bosch 1,8 Turbo with 24C02 memory, BOSCH 0 261 204 678,778,818,805
BMW:
1. BMW 318 TDS Bosch 0 281 001 243 – 93C46(B58323)
2. REPAIR ECU BMW 2.0L – 2.8L on Siemens MS41.0 DME 29F200
CITROEN:
1. Calculate – Citroen Berlingo/BSI – MCU NEC
2. Calculate – Citroen C3/BSI – MEM 95160
3. Calculate – Citroen Xara/BSI – MEM 95040
4. Calculate – Citroen Xara Picasso/BSI – MEM 95040
5. Decrypt-Encrypt Citroen/Peugeot dump-file
6. Programm Citroen/Peugeot EDC15 PIN MEM 5P08C3
7. Programm Citroen/Peugeot EDC16 PIN MEM 95160
8. Programm Citroen/Peugeot ECU ME 7.4.4 Bosch
9. Repair ECU – MAGNETI MARELLI IAW G 6.14 (Model ZX), ECU – with HC11 Motorola/Toshiba mcu
10. Repair ECU – Citroen/Peugeot EDC15 5P08C3 PIN (Remove Immo action)
11. Repair ECU – Citroen Saxo 1,6 – 8 Valves, ECU Bosch MP5.2 93S46 – Remove Immo action
12. Repair ECU – Citroen Saxo 1,0 – ECU Bosch MA3.1 24C02 – Remove Immo action
13. Calculate PIN Citroen/Peugeot EDC15 PIN 95P08
14. Calculate PIN Citroen/Peugeot EDC16 PIN 95160
15. Repair ECU – PSA – ECU Bosch MP7.2 24C02 – Remove Immo action
16. Repair ECU – PSA – ECU Bosch MP7.3 24C02 – Remove Immo action
17. Repair ECU – PSA – ECU Bosch MA 3.0 93S46 – Remove Immo action
18. Repair ECU – PSA – ECU Bosch MA 3.1 93S46 – Remove Immo action
19. Repair ECU – PSA – ECU Bosch MA 3.2 93S46 – Remove Immo action
20. Calculate PIN – Citroen/Peugeot SID803 ECU Siemens MEM 95320
21. Programm PIN – Citroen/Peugeot SID803 ECU Siemens MEM 95320
22. Calculate PIN – Citroen/Peugeot Bosch ECU ME 7.4.4
FIAT:
1. Repair ECU – BOSCH with 24C02 memory ECU – BOSCH 0 261 204 405
2. Repair ECU – MAGNETI MARELLI IAW 5NF.T1 with 95160
3. Repair ECU – MAGNETI MARELLI IAW 16F.XX with HC11F1 MCU
4. Repair ECU – MAGNETI MARELLI IAW 1ABB.92 with TMS374 MCU
5. Repair ECU – MAGNETI MARELLI IAW 1AF.1G with TMS374 MCU
6. Repair ECU – HITACHI MFI 003BC2 with 59C11 MEM
7. Repair ECU – BOSCH 0 281 010 488 with 5P08C3 MEM 95P08
8. Repair ECU – MAGNETI MARELLI IAW 4AF.M1 with 95160
9. Repair ECU – MAGNETI MARELLI IAW 4AF.M7 with 95160
10. Repair ECU – MAGNETI MARELLI IAW 4AF.M9 with 95160
11. Repair ECU – MAGNETI MARELLI IAW 4AF.S2 with 95160
12. Repair ECU – MAGNETI MARELLI IAW 8P.22 with HC11 mcu
13. Repair ECU – MAGNETI MARELLI IAW 18F.XX with HC11F1 mcu
14. Repair ECU – MAGNETI MARELLI IAW 49F.B4 with 95040
15. Repair ECU – MAGNETI MARELLI IAW 8F.5T with HC11E9 mcu
16. Repair ECU – MAGNETI MARELLI IAW 8F.6B with HC11E9 mcu
17. Repair ECU – DELCO BPKA 2 plugs(beige+red) with HC11F1 mcu e.g. DELCO – 162 142 79
18. Repair ECU – MAGNETI MARELLI IAW 59F.M2 (Hybrid) 95080
19. Repair ECU – MAGNETI MARELLI IAW 59F.M3 (Hybrid) 95080
20. Repair ECU – MAGNETI MARELLI IAW 59F.M7 (Hybrid) 95080
21. Repair ECU – MAGNETI MARELLI IAW 59F.M9 (Hybrid) 95080
22. Repair ECU – LUCAS DCU3F with 95080 memory
23. Repair ECU – IAW 8F.5T with Magneti Marelli HC11F1 mcu
24. Repair ECU – MAGNETI MARELLI IAW 1AF.13 with TMS374 MCU
25. Repair ECU – MAGNETI MARELLI IAW 1AF.15 with TMS374 MCU
26. Repair ECU – MAGNETI MARELLI IAW 1AF.17 with TMS374 MCU
27. Repair ECU – MAGNETI MARELLI IAW 1ABG.81 with TMS374 MCU
28. Repair ECU – MAGNETI MARELLI 1G7SP.71 with HC11F1 MCU (C/R immo)
Clear immo solution, for remove immo – cut immobiliser line
KIA:
1. Repair ECU – SIEMENS K103735120A with TMS374 MCU
2. Repair ECU – BOSCH Engine 2.0 16V with 24C02
MAZDA:
1. Repair ECU Mazda 323 Diesel with ST93c56 Denso ECU and Mitsubishi Immo Box
Use this option to prepare the ECU for coding a new key
MERCEDES-BENZ:
1. Repair C,E class (inra-red) (Step 1/2) – ECU Motorola HC11E9 Lucas ECU
2. Repair Mercedes Benz (C and E Class) infra-red (Step 2/2) – Immo file Motorola HC05 Siemens
3. Sprinter Start Error PROBLEM Temic – Motorola HC08
4. Vito START ERROR PROBLEM Temic – Motorola HC05
5. Vito START ERROR PROBLEM Temic – Motorola HC08
6. Unlock ECU Sprinter Prepare ECU for coding ECU with 1 plug and 24C02 MEM
7. Unlock ECU Sprinter Prepare ECU for coding with 5 plugs and 5P08C3 MEM 95P08
8. Unlock ECU Vito Prepare ECU for coding with 5 plugs and 24C04 MEM
9. Repair A class ECU Siemens/VDO with 29F200 memory
10. START ERROR PROBLEM Sprinter 2.2 , 2.7 to repair damaged ECU, WSP must be OK ECU with 5 plugs and 5P08C3 MEM 95P08
11. Unlock ECU (prepare for coding) – EDC16, MEM 95320
OPEL:
1. Repair ECU – DELCO with HC11F1 MCU (2 plugs (red+white))
2. UNLOCK ECU (prep. for coding) – BOSCH DTL with 24C04 memory and 29F200
3. Repair ECU – DELCO with HC11F1 MCU (2 plugs (blue+grey))
4. Repair ECU Siemens Simtec 56.1 with 93C56 MEM
5. UNLOCK ECU (prep. for coding) Bosch – DTL 24C04 + 2x29f010
6. Repair ECU – Siemens Simtec 56.1 with 29F010 MEM – Remove Immo
7. Repair ECU – (1.7, 2.0) 16V – Turbo Diesel (Remove Immo)
8. Repair ECU – 1.2 8V Delco/GM with 27C256 MEM (Remove Immo)
9. Repair ECU – BOSCH Motronic based on 24c02 I2C MEM
10. Repair ECU – (2.5) Turbo Diesel Bosch – Opel/BMW 2 x 93C46 MEM (Remove Immo)
PEUGEOT:
1. Programm PIN Peugeot Sagem S2000
2. Calculate Peugeot 206/BSI – MEM 95160
3. Calculate Peugeot 206/BSI – MCU HC912
4. Calculate Peugeot 307/BSI – MCU HC912
5. Calculate Peugeot 307/BSI – MEM 95160
6. Repair ECU – BOSCH MP5.1.1 with 93C46 memory
7. Repair ECU – SAGEM S2000 with 95080 memory
8. Repair ECU – IAW 1AP.80 – Magneti Marelli with TMS374 MCU
9. Repair ECU – IAW 1AP.81 – Magneti Marelli with TMS374 MCU
10. Repair ECU – IAW 1AP.40 – Magneti Marelli with TMS374 MCU
11. Repair ECU – SL96 9 Sagem with TMS374 MCU + 1x28F512
12. Repair ECU – 2.3, 2.8 JTD BOSCH 0 281 010 484 with 5P08C3 MEM 95P08
13. Repair ECU – IAW 1AP.20 – Magneti Marelli with TMS374 MCU
14. Repair ECU – IAW 1AP.90 – Magneti Marelli with TMS374 MCU
15. Repair ECU – IAW 48P2.xx Magneti Marelli with 29F400 MEM (1.1 Engine)
16. Repair ECU – SL96 9 Sagem with TMS374 MCU + 2x28F512
17. Repair ECU – IAW 1AP.41 Magneti Marelli with TMS374 MCU
18. Repair ECU – IAW 1AP.43 Magneti Marelli with TMS374 MCU
19. Repair ECU – IAW 1AP.83 Magneti Marelli with TMS374 MCU
20. Repair ECU – IAW 8P.xx Magneti Marelli with HC11A8 MCU
21. Repair ECU – SAGEM S2000RPM with 95080 memory
22. Repair ECU XXX PSA Johnson Controls – MEM 95160 memory, Remove Immo !
23. Repair ECU IAW 6LP2.02 – Magneti Marelli ST10F280 MCU, Clear Immo !
24. Repair ECU EDC16 Bosch EDC16C34, Remove Immo ! 95640 MEM
RENAULT:
1. Repair ECU – Magneti Marelli 5NR.xx – hybrid
2. Repair ECU – EDC15C3 – BOSCH with 5P08C3 memory 95P08
3. Repair ECU – DELPHI with 95080 memory
4. Repair ECU – LUCAS DCU3R with 25080 memory, Clear Immo!
5. Repair ECU – LUCAS DCU3R with 25080 memory, Remove immo!
6. Repair ECU – SIEMENS – SIRIUS32 with 29F200 memory
7. Repair ECU – SIEMENS – SIRIUS34 with 29F400 memory (Algo 1)
8. Repair ECU – Fenix 5 SIEMENS – with TMS374 MCU (TMS374C003A)
9. Repair ECU – SIEMENS – FENIX 3 with HC11E9 mcu
10. Repair ECU – Magneti Marelli – IAW5NR2.XX with 95160 memory, clear immo
11. Repair ECU – Magneti Marelli – IAW5NR2.XX with 95160 memory, clear immo
12. Repair ECU – Bosch – 1.9 DTI (2 plugs) with 24C04 memory e.g.
ECU – BOSCH 0 281 010 502 – 24C04 memory
ECU – BOSCH 0 281 010 442 – 24C04 memory
13. Repair ECU – Bosch – 1.9 DTI (1 plug) MSA 15.5 with 24C02 memory
14. Repair ECU – Magneti Marelli – IAW 6R.20 with TMS370 mcu
15. Repair ECU – Magneti Marelli – IAW 6R.30 with TMS370 mcu
16. Repair ECU – SIEMENS – SIRIUS32 (Engine 16V) with 29F200 memory
17. Repair ECU – Delphi – 1,5DCI with 95160 memory, Remove crash blockade
This solution removes crash entry – created after an accident.
18. Repair ECU – SIEMENS – SIRIUS35 with 29F400 memory
19. Repair ECU – SIEMENS – SIRIUS34 with 29F400 memory (Algo 2)
20. Repair Megane 2 steering lock with 24C04 memory
21. ECU – Bosch – MP 7.0 with 24C02 memory
22. Repair ECU – Magneti Marelli – IAW 8R.30 with HC11A1 mcu (Remove Immo)
ROVER:
1. Repair ECU – ROVER M.E.M.S – with 93C46 memory
SKODA:
1. Repair ECU – SIEMENS – SIMOS with 93C56 memory
TOYOTA:
1. Repair ECU – YARIS – Denso – with 93C56 memory
2. Programm – IMMO Keys for External Immo Box with 93LC66 memory and 4C Texas transponder
V.A.G.
1. Repair ECU – BOSCH with 24C04 memory e.g.
ECU – BOSCH 0 281 010 179 – 24C04 memory
ECU – BOSCH 0 281 010 407 – 24C04 memory
ECU – BOSCH 0 281 010 497 – 24C04 memory
ECU – BOSCH 0 281 010 199 – 24C04 memory
ECU – BOSCH 0 281 010 385 – 24C04 memory
ECU – BOSCH 0 281 010 179 – 24C04 memory
2. Calculate ECU – BOSCH EDC16 with 95320 memory
3. Calculate IMMO – SIEMENS 5WK4 678-1H0 953 257 BB with HC05 MCU
4. Calculate IMMO – SIEMENS 5WK4 7740-6H0 953 257 B with TMS370 MCU
5. Calculate IMMO – VALEO 6X0 953 257 with 24C04 MEM
6. Calculate IMMO – VW LT with HC05X16 MCU
7. Calculate IMMO – White Box with C46A6 – 93C46 MEM, 4A0 953 234 F – f+g megamos
8. Repair ECU TDI (1 plug) Bosch – 24C02 MEM
9. Repair ECU TDI (2 plugs) Bosch – 24C02 MEM
10. Repair ECU – BOSCH EDC16 with 95320 memory (Remove Immo)
11. Repair ECU – BOSCH ME7.x(x) with 95040 memory (Remove Immo)
12. Repair ECU – Simos with 93C76 memory, Siemens, Remove Immo
OTHER:
1. DAEWOO – Repair ECU – SIEMENS K115000010G with TMS374 MCU
2. POLONEZ – Repair ECU – DELCO CHNW with HC11F1 MCU
3. Universal file decoder: Enter coding word and press start
4. IVECO Daily – Repair – ECU – BOSCH with 2416 MEM e.g.
ECU – BOSCH 0 281 001 537 – 24C16 memory
5. Chrysler Voyager 2.5 TD, Remove Immo, ECU – BOSCH with 24C02 memory e.g.
ECU – BOSCH 0 281 001 768 – 24C02 memory
