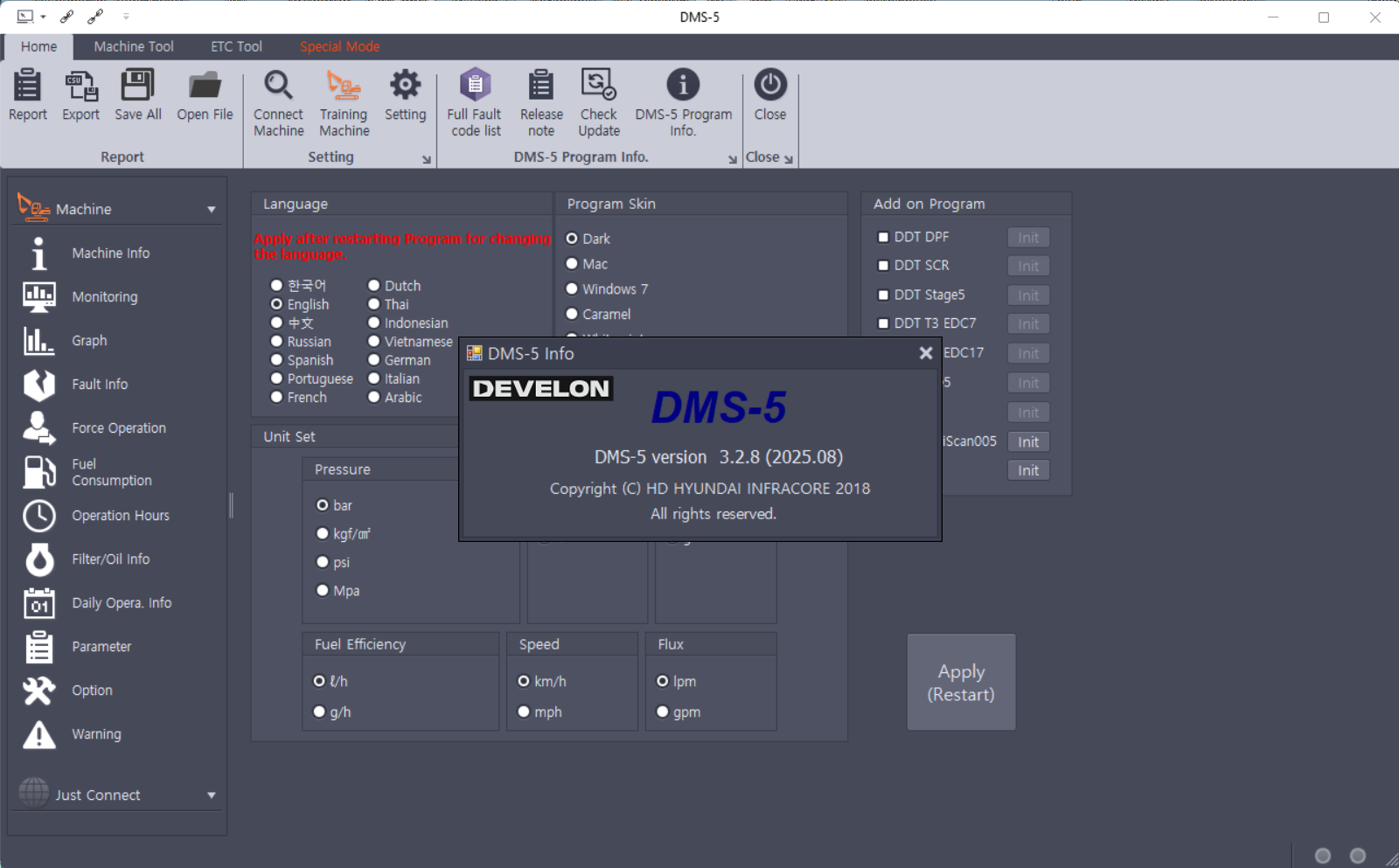

Doosan DMS-5 2024.09 (Doosan Data Monitoring System) is a special diagnostic software for Doosan machine.You are able to do monitoring,check graph output force operate,diagnosis…for Doosan excavator,wheel loaders.
Note:After payment you will get download link on page,if you can not get it,pls contact on Whatsapp or autoepccatalog@outlook.com.
Doosan DMS-5 Features:
Size:about 230MB
Date:2024.09/2024.06
Version:3.1.9/3.2.1
Regions:Worldwide
Support Doosan Diagnostics Tool uVIM
Languages:Korean,Chinese,English,Spanish,Russian,Portuguese,French,Dutch
Price only for ONE PC Installation and activation
Doosan DMS-5 Functions:
Machine information
Monitoring
Graph view
Fault information
Force Operation
Fuel Consumption
Operation Hours
Filter/Oil information
Daily Opera information
Parameter programming
Monitoring:You can monitor the current status of equipment installed with Controller (EPOS or VCU).
Graph Output:The major excavator/Wheel Loader sensor data will be displayed ina graph format. The data can be saved in the hard disk. You can check theexcavator/Wheel Loader’s performance through data comparison and analysis.
Force Operation:You can use vehicle diagnosis by forcing Controller (EPOS or VCU) outputs.
Diagnosis: You can check the real-time and past malfunction history maintained by Controller (EPOS or VCU).
History Data:You can analyze the work patterns when using an excavator/Wheel Loader, by checking the operation hours, filter/oil information, and daily operation information.
Force Operation:
Engine RPM
Fan Control P/V
Solenoid & Relay 1
Solenoid & Relay 2
Solenoid & Relay 3
EMCV PN Float
EMCV P/V Crowd
EMCV P/V Dump
EMCV P/V Raise
EMCV P/V Option 1
EMCV P/V Option 2
Spare P/V (1)
Spare P/V (2)
Spare P/V (3)
Digital Output
Digital Output
…
Operation Hours View:
Operating Mode
Engine RPM
Engine Touque
Engine Torque Speed Zone
Pump Load Stength
T/M Oil Temp
Coolant Temperature °C(°F)
Vehicle Speed
Hydraulic Temperature °C(°F)
Axle Oil Temp.
Filter/Oil Information View:
Return Filter
Pilot Filter
Engine Oil
Hydraulic Oil
Coolant
Transmission 0il
Transnmission 0il Filter
Diesel Particulate Filter- ash cleaning
Axde Oil
DEF(Adblue)
Breather oil Filter
Oil Bath Predleaner (Opt)
DEF (AdBlue) Filter
DEF (AdBlue) Breather Filter
Engine oil Centrifugal Cleaner Filter
Air Conditioner Flter (outer)
Parameter View:
Fan_ Param
eMcvDampControl
OptionEpprCtrl
SoftStartAndStop
NPC. E Mode_ Engine. Map
NPC_ S_ Mode_ Engine. _Map
NPC P Mode Engine. Map
EngMapSAT1Mod
EngMapSAT2Mod
EngMapSAT3Mod
EngMapSAT4Mod
SAT_ EtcParam
EngineLowldleSetup
Ecoguidance Parameter
Boom Joy2Eppr mA Table FineSensitivity
Boom Joy2Eppr mA Table NormalSensitiv
Bucket Joy2Eppr mA Table. FineSensitivity
Bucket Joy2Eppr_ ma _Table. NormalSensitr
ElecSteerSensitivity
ElecSteerJoy2LeftValue _High. PFC Table
Steer Joy2LeftValue_ Medium PFC Table
Steer Joy2LeftValue. Low PFC. Table
Joy2Eppr ma Table. eMCV
Joy2Eppr_ ma _Table. pMCV
WorkLisAngle
Multipurpose Tuning
Bucket _Dusting. Parameter
EngRPM_ Parameter
Doosan DMS-5 Coverage Models:
Doosan Excavators:
DX Model
DX110LCR,DX140W,DX140WE,DX140LCR,DX140LC,DX180LC,DX170W,DX190W,DX190WA,DX235LCR,DX220LC,DX220LCY,DX225LC,DX225LL,DX210W,DX255LCY,DX255LC,DX300LCY,DX300LC,DX340LC,DX350LC,DX350LCY,DX380LC,DX700LC,DX420LC,DX480LC,DX480LCA,DX420LCA,DX420LCA,DX340LCA,DX300LCA,DX480LCY,DX420LCY,DX380LCY,DX225LCY,DX340LCY,DX150LCY,DX225LCA,DX210,DX225LNC.DX225NLCA,DX260LCA,DX520LC,DX300LL, DX140W ACE,DX190WA,DX210WA
U Model
DX140LC-3,DX140LCR-3,DX140W-3,DX170W-3,DX180LC-3,DX190W-3,DX210W-3,DX210LCR-3, DX225LC-3,DX255LC-3,DX300LC-3,DX340LC-3,DX350LC-3,DX350LCY-3,DX380LC-3,DX420LC-3, DX490LC-3,DX700LC-3
V Model
DX140LC-5,DX140LCR-5,DX180LC-5,DX225LC-5,DX235NLC-5,DX235LCR-5 DX255LC-5,DX300LC-5, DX340LC-5,DX380LC-5,DX420LC-5,DX490LC-5,DX530LC-5,DX140W-5,DX170W-5,DX190W-5,DX210W-5,DX190WA,DX210WA,DX225NLCA,DX260LCA,V05,DX140W,DX220LCA,DX480LCA, DX420LCA, DX420LCA,DX340LCA,DX300LCA
Doosan Wheel Loaders
DL Model
DL
H Model
DL200-3,DL250-3,DL300-3,DL300-3 (eMCV),DL350-3,
DL350-3 (eMCV), DL400-3,DL400-3 (eMCV),DL450-3,DL450-3 (eMCV), DL550-3, DL550-3 (eMCV)
K Model
DL200-5,DL250-5,DL300-5,DL300-5 (eMCV),DL350-5,DL350-5 (eMCV),DL400-5,DL400-5 (eMCV), DL450-5, DL450-5 (eMCV), DL550-5, DL550-5 (eMCV)
C Model
DX120-9C, DX220LC-9C, DX340LC-9C, DX380LC-9C,
DX420LC-9C,DX500LC-9C
Doosan DMS-5 Update History:
3.2.1
1) Enable engine RPM condition determination function during VBO Calibration
2) Modify ValueCAN4 channel settings and response processing capabilities
3.2.0
EN:
1) Fix: Update monitoring and error code items for ADT models
2) Fix: Update parameter items for GMEX and MEX models
3) Add: VCU update functionality for VKK05 and VKK05W MY models
4) Add: Improve DMS-5 monitoring functionality (add search functionality and default group)
5) Fix: Modify to display the SMK Cluster button only for SDK models
6) Add: Thumbwheel functionality for VDK/VMK production models
3.1.9
1) ADT Engine Specifications Reflected
2) Fixing Check Update button functionality errors
3) Add VMK75 Monitoring Items
4) Add Training Mode Model
(DX225LC-7M, DX225LCA-7M DX490LCA-7M
3.1.8
1) Server domain change
2) Addition of model VDK10W (T4F specification)
3) Modify VBO Calibration ramp-up time display for Rectangular Item (US standard)
3.1.7
1) Update VBO FEH correction graph label names
2) Modify notification message for small EPOS Update (based on
language settings)
3) Add monitoring item for VDK models
4) Include TCU Fault Code for Wheel Loader and ADT
3.1.6
1) Fix: Graph Logging Functionality Issue
3.1.5
1) Fix: Graph Logging Functionality Issue.
3.1.4
2) Add: CTL Firmware Update functionality.
3) Add: CTL Security features.
4) Add: CTL Parameter Writing functionality.
5) Add: GMEX 2.7-ton Engine Specifications (Kubota).
3.1.3
Add: VBO / FEH Calibration Help, TSG File
3.1.2
1) Fix: GMEX parameter error
2) Fix: Modify VBO Rectangular Item Names
3.1.1
1) Fix: Automatic correction feature and logic error fixes for VBO
2) Fix: Modification of the past malfunction information deletion
function (removal of authorization restrictions)
3) Add: Addition of VBO VCC19 and 20 models
4) Fix: Enhancement of the reporting function
3.1.0
1) Fix : execution error in CheckUpdate function.
3.0.5
1) Fix : Engine Diagnostic Program Displayed.
3.0.4
1) Add : interface for IDT device (ValueCAN4).
3.0.3
1) Fix : ThumbWheel Joystick Setting error.
3.0.2
1) Fix : update popup error.
3.0.1
1) Delete : built-in engine function.
2) Add : ‘Check Update’ button.
3) Add : auto warm-up function.
3.0.0
1) Fixed VMK model recognition error.
2) Modify the TMS status information item.
3) Added do not show in update popup window.
2.9.9
1) Construction of engine diagnostic program deployment system.
2) Improvement of TSG deployment system.
2.9.8
1) Fixed Model Name error .
2) Fixed Filter Oil list error.
3) Fixed Parameter list error.
2.9.7
1) Fixed graph loading error .
2) Fixed VBO file loading error.
3) Modified the graph function.
2.9.6
1) Fixed an error in the ‘OK’ button on the training machine.
2) Fixed CAN logging file loading error.
3) Fixed ‘save all’ function error of operationhour.
2.9.5
1) Fix ‘Save All’ function error (VGK, VMK).
2) Added ‘write parameter map’ function to excavator.
2.9.4
1) Modified to display model name normally.
2) Modified so that the VBO button is activated normally.
3) Addition of Dozer types in Training Machine.
4) Modified so that the report function works normally.
5) Modified so that the client key is generated normally
2.9.3
1) Addition of excavator types under 10 tons (Reduced Tail – R,Zero Tail – Z)
2) In case of FEH model, the joystick check (hydraulic) button is reflected to be inactive.
3) Option Set menu is added.
Troubleshooting Support Models
Engine_BOSCH_DL0608_Stage5
Engine_BOSCH_G2_Stage5_NR4
Engine_BOSCH_T3
Engine_BOSCH_T4F
Engine_BOSCH_T4F_DL-5
Engine_PERKINS_T3
Engine_PERKINS_T4F
Engine_SCANIA_Stage5
Engine_SCANIA_T4F
Engine_WOODWARD
Steering_DX-7
Steering_Stage5
Steering_T4F
TCU_Cp
TCU_Cp_Stage5
TCU_T4I
TCU_ZF_T4F
DTC Trouble Codes Description Support Models
BMS X
Engine_BOSCH_DL0608_NR4
Engine_BOSCH_DL0608_Stage5
Engine_BOSCH_G2_Stage5_NR4
Engine_BOSCH_T3
Engine_BOSCH_T3_DLO6
Engine_BOSCH_T3_DLO8
Engine_BOSCH_T3_EDC7
Engine_BOSCH_T4F
Engine_BOSCH_T4F_DL-5
Engine_BOSCH_T4I
Engine_BOSCH_T4I_DL-3
Engine_Cummings_DX
Engine_Cummings_T3
Engine_Cummings_T4F
Engine_Cummings_T4I
Engine_DELPHI_T3
Engine_DELPHI_T4F
Engine_DLO6_DX
Engine DL08 DX
Engine_ISUZU_DX
Engine_ISUZU_T3
Engine_ISUZU_T4F
Engine_ISUZU_T4I
Engine_PERKINS_Mid_Stage5
Engine_PERKINS_Stage5
Engine_PERKINS_T3
Engine_PERKINS_T4F
Engine_SCANIA_Stage5
Engine_SCANIA_T3
Engine_SCANIA_T4F
Engine_SCANIA_T4I
Engine_WEIFU
Engine_WOODWARD
Engine_YANMAR_T3
Engine_YANMAR_T4F
Inverter
OBC
Steering_DX-7
Steering_Stage5
Steering_T4F
Steering_T4I
TCU_Cp
TCU_Cp_Stage5
TCU_DZ
TCU_HST_Stage5
TCU_HST_T4F
TCU_T4I
TCU_ ZF_Stage5
TCU_ZF_T4F
Vehicle_B
Vehicle_C
Vehicle_C07
Vehicle_C11
Vehicle_CTL
Vehicle_DL
Vehicle_DL-3
Vehicle_DL-5
Vehicle_DL-7
Vehicle_DX
Vehicle_DX-3
Vehicle_DX-5
Vehicle_DX-5_Rops
vehicle_DX-7
Vehicle_Dz
Vehicle_Sola
Vehicle_vccS
