Deutz DECOM Communicator Diagnostic Tool for Deutz Engine Controllers

Description

Deutz DECOM support CAN K/L-Line Deutz DECOM controllers diagnosis kit.Dealer diagnostic equipment DEUTZ DIAGNOSTIC KIT (CANUSB) created for full service of all DEUTZ machines from small diesel engines and ending with mining equipment. DEUTZ DIAGNOSTIC KIT (CANUSB) allows access to all electronique controle module (ECMS).

DEUTZ DIAGNOSTIC KIT of control programs Deutz SerDia 4.0 or 2010 (2015) allows you to change not only modes of engine operation or a group, but also configure the ECM, or update the firmware of electronic controle module. ON Deutz SerDia 2010 has an understandable interface and easy to use

DeCOM is genuine Deutz dealer interface with support of two CAN, K/L-Line, J1708 protocols. It is the mostly recommended interface for SerDia 2010 to work on all (EMR2/3/4) controllers.



Deutz DECOM Communicator Features:
OEM
High Quality
Without Software,need pay extra buy software
Compatible software: Deutz SerDia 4.0 and Serdia2010
Free Shipping by Fedex/UPS/DHL
Without software



What is the different Between Deutz DECOM and DEUTZ High II Interface?

	Deutz DECOM Interface	Deutz High II Interface
Compatible software	SerDia 4.0 and Serdia 2010	SerDia2000 and SerDia2010
Model Support	Support  MD1/EMR5	can not support MD1/EMR5
USB Dongle	Required	Required
License time	Lifetime	Lifetime
Software Level	Level 6	Level 6
Serpic	Support	Not
Engine file onlien download	Support	Not





Deutz Diagnostic Tool Decom Functions:

View real values
Reading and resetting errors
View the engine parameters at the time of failure and register it in the ECM.
Active and slave diagnostics.
Flashing (software update) ECM
Setting the ECM.
ECM Calibration



Deutz DECOM Communicator Supported Controllers:





Deutz DECOM Communicator Diagnostic Tool Technical Parameters：

· K-Line and L-Line interface according ISO 9141-2 and ISO 14230-4. Baudrate up to 500 Kbaud.
· 2 Full Can with max. 1 Mbit/s adjustable, according CAN-specification 2.0A und 2.0B
· USB 2.0 full-speed
· Galvanic isolation of inputs and to the PC
· Power supply from PC, current max. 250 mA
· LEDs for showing state of interface communication:

· working temperature range –20°C bis +60°C storing temperature range –40°C bis +85°C
· type of protection: IP50
· Deutz standard diagnostic plug, 12 pole
· switchable termination resistor
· 1m wiring length: Interface <=> PC fixed on interface with bend protection and cord grip 2m wiring length: Interface <=> ECU fixed on interface with bend protection and cord grip
· power supply from PC
· voltage range: 8-32V
· EMC according DIN ISO 7637-2 DIN EN 61000-4-2, 61000-4-3, 61000-4-4, 61000-4-6, 61000-6-2,61000-6-4



How to Use Deutz DECOM Interface?

1 Make sure your PC Serdia4.0 or Serdia2010 installed

2 Connect both DECOM and USB Dongle to PC

3 Connect DECOM to machine diagnostic port

4 Run Serdia4.0 or Serdia2010 on PC,then enjoy it.





Deutz DECOM Software Download:

Deutz DECOM software download and install please contact my team,Deutz DECOM software need work with DECOM interface and USB Dongle,my team will remote install it for you free.





DEUTZ DECOM Price:

The price we offer is very cost-effective. Our technical team provides free after-sales service, and the price includes the express delivery fee of the product.



DEUTZ DECOM Serdia4.0 or Serdia2010 License:

DEUTZ DECOM work on Serdia4.0 or Serdia2010 provided by my team,the license is level 6 and with lifetime license time.



Deutz DECOM Serdia Manual Download:

Deutz DECOM Manual download here



Deutz DECOM FAQs:

Question 1:What is the different between DECOM and High II?

Answer 1:Deutz DECOM support new models MD1/EMR5



Question 2:What software Deutz DECOM compatible?

Answer 2:DECOM work with Serdia4.0 and Serdia2010



Question 3:How long get DEUTZ DECOM after payment?

Answer 3:We use Fedex/UPS/DHL shipping service,normally it will need about 3-7 workings for worldwide.



Question 4:Can you promise it work?

Answer 4:My team will test DEUTZ DECOM before shipping to ensure it work 100%,so please don’t worry about it.



Question 5:What protocols DECOM support?

Answer 5:Deutz DECOM support both CAN K/L-Line J1708 protocols.



Question 6:Your team provide software?And can i have discount if buy both DECOM and serdia?

Answer 6:Yes,my team provide both DEUTZ DECOM and Serdia4.0/Serdia2010.If you buy both of them,just message on Whatapp,will give good price.



Question 7:can you install software on laptop,then send it to me?

Answer 7:Yes,my team will install Serdia4.0 on laptop.Then shipping it together to you with DECOM,just message me if you want.





Deutz SerDia 4.0+DECOM Test on Deutz EDC16UC40



Deutz DECOM Diagnostic Tool Video Show:





Deutz DECOM Communicator Package:

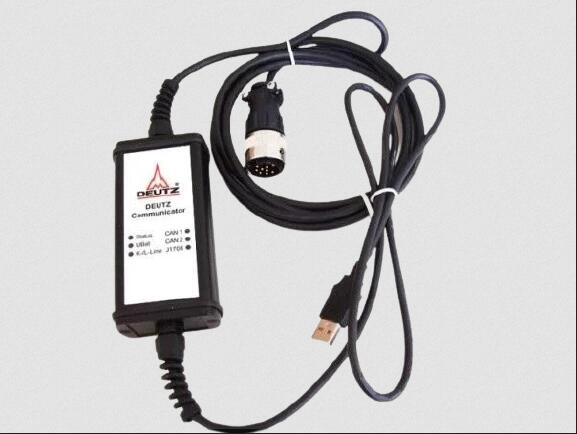

1x Deutz DECOM CANUSB Interface with cable
1x high quality box
