[11.2024] AGCO EDT Electronic Diagnostic Tool 1.128 Diagnostic Software

Description

AGCO Electronic Diagnostic Tool EDT is a set of programs that allows (using the appropriate adapter, which is purchased separately) to diagnose via the CAN data bus of AGCO Inc. products, which also provides an interpretation of error codes,which includes (not for all products) electrical circuits, description of sensors and locations their installation as well as solving the most common problems in the electrical field.

Note:After payment you will get download link on page,if you can not get it,please send email to autoepccatalog@outlook.com



AGCO EDT Electronic Diagnostic Tool Features:

Released Date:2024.11
Date version:1.128.24284.909
Size:install files about 38GB
License:5 years
OS:Windows 10 and Windows 11 recommended
Offline version,it can not do online functions
Support 60%-70% models,it can not support all models
Languages:English,Dutch,French,Finnish,German,Spanish,Portugese,Danish,Russian,Polish,Italian,Turkish,Swedish,Chinese,Norwegian.

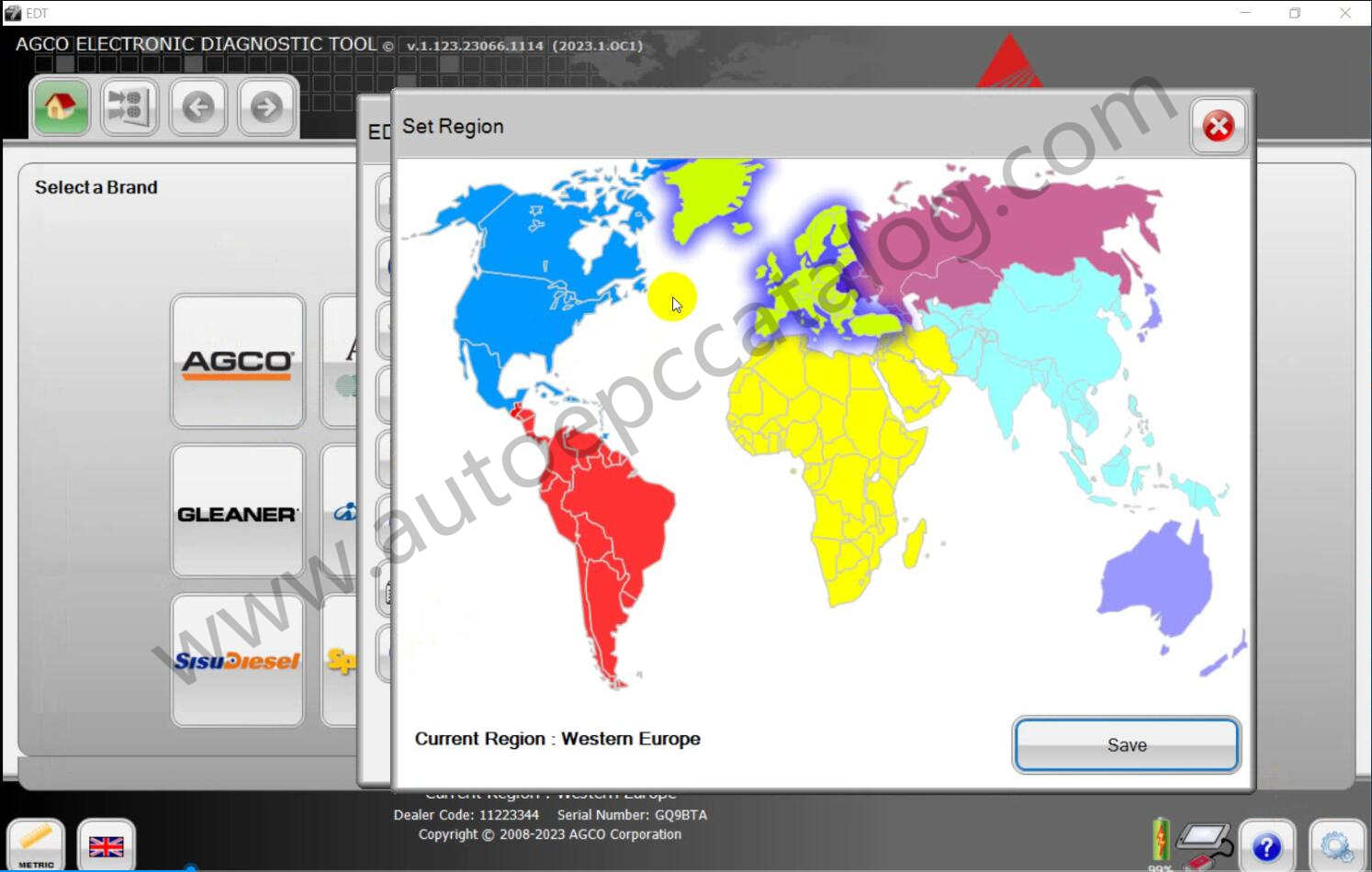

Regions:South America,North America,Western Europe,Eastern Europe,Africa/Middle East,Asia, Australia/New Zealand/Japan.

Price only for ONE PC installation,my tech team will install it for you by remote.

it will take long time to finish installation,3-6 hours

It is important to emphasize that the AGCO EDT OFFLINE versions, despite the fact that all brands are displayed, not all of them are properly activated with their plugins.

It is also important to emphasize that for the FENDIAS brand the FENDT FENDIAS program is necessary, for them a DONGLE is also needed. This is relevant as FENDIAS in AGCO EDT is just a redirector to FENDT FENDIAS.



AGCO EDT Electronic Diagnostic Tool Functions:

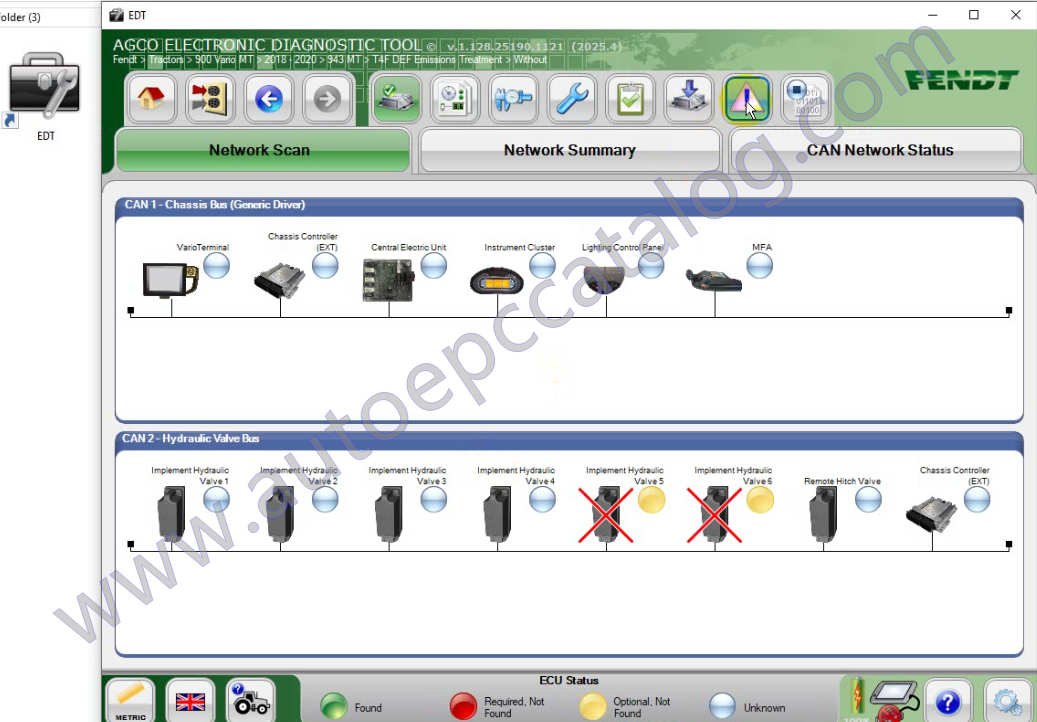

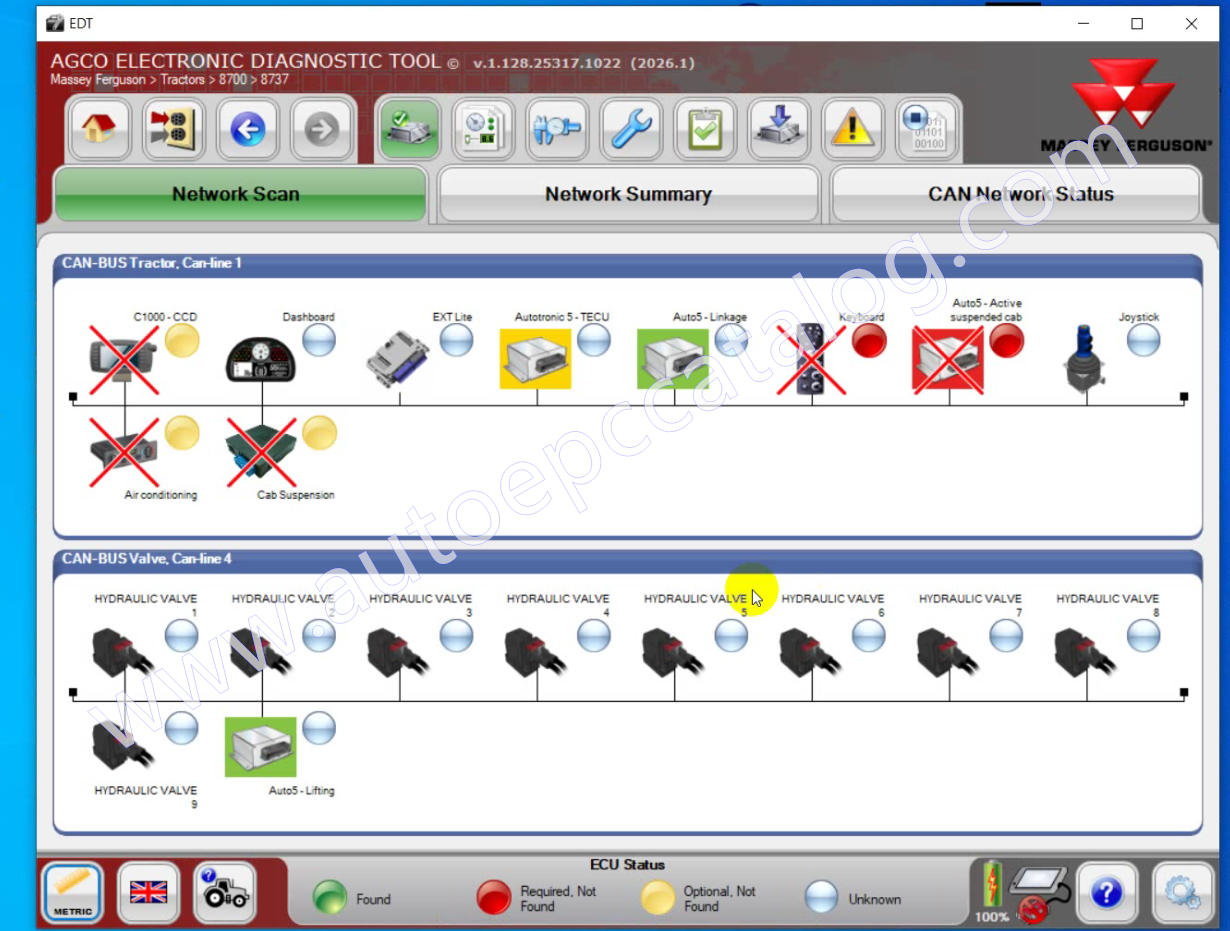

Network Scan
Diagnostic by Function
Calibration
Configuration
Diagnostic Test

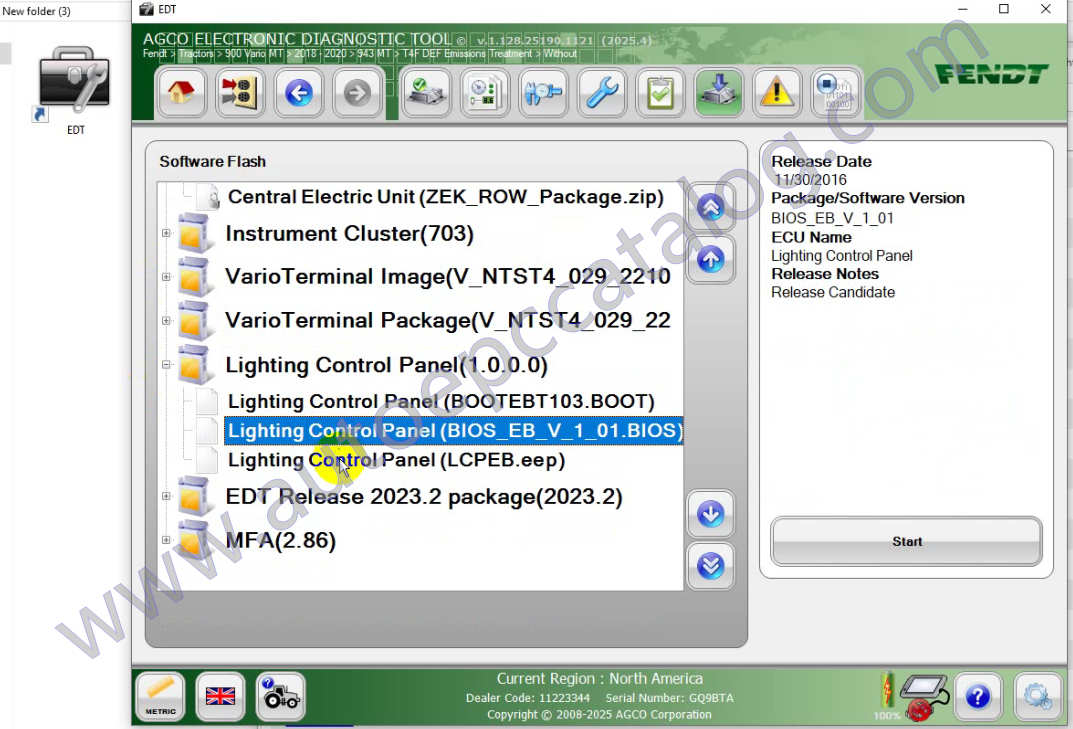

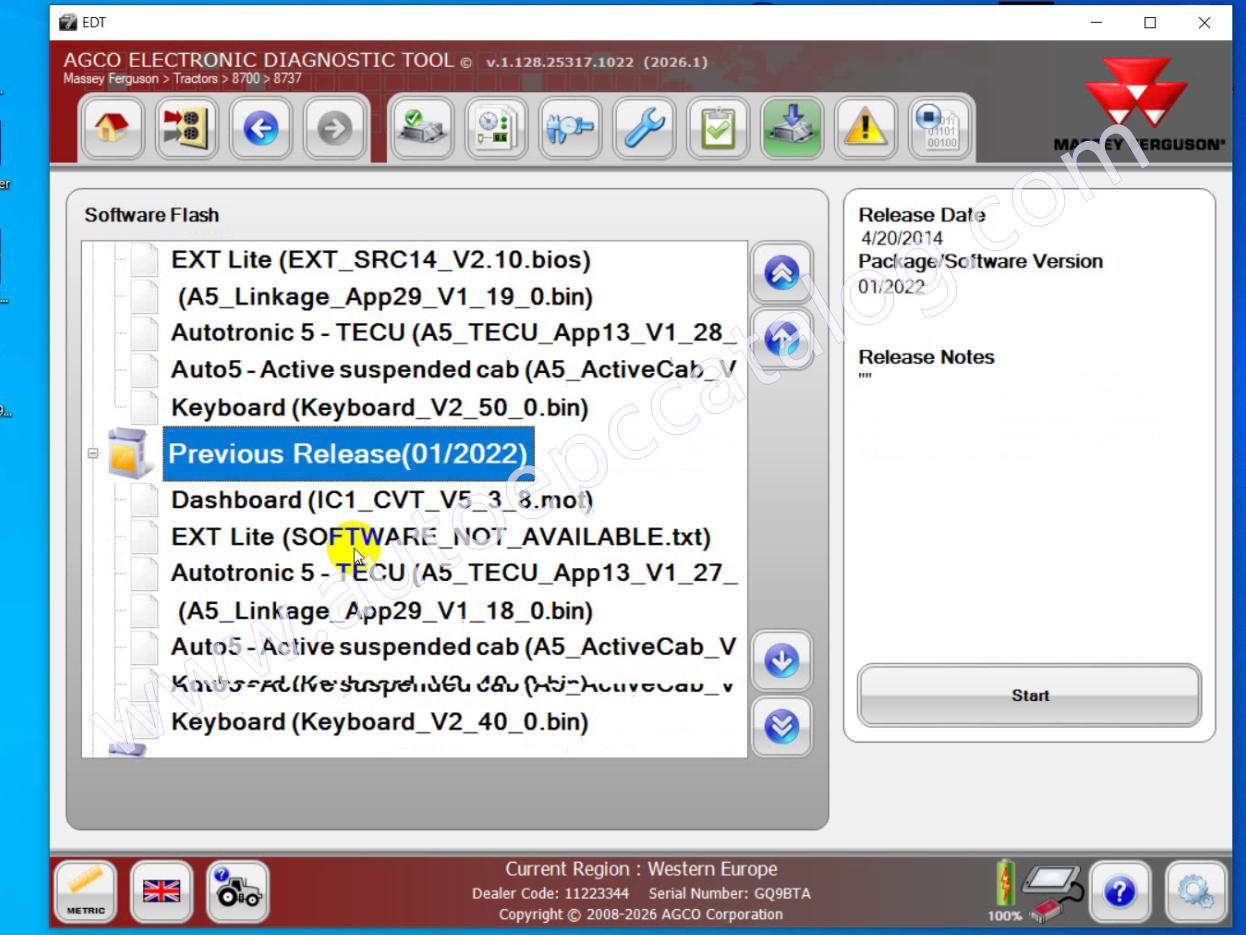

Software Flash
Diagnostic Trouble Codes

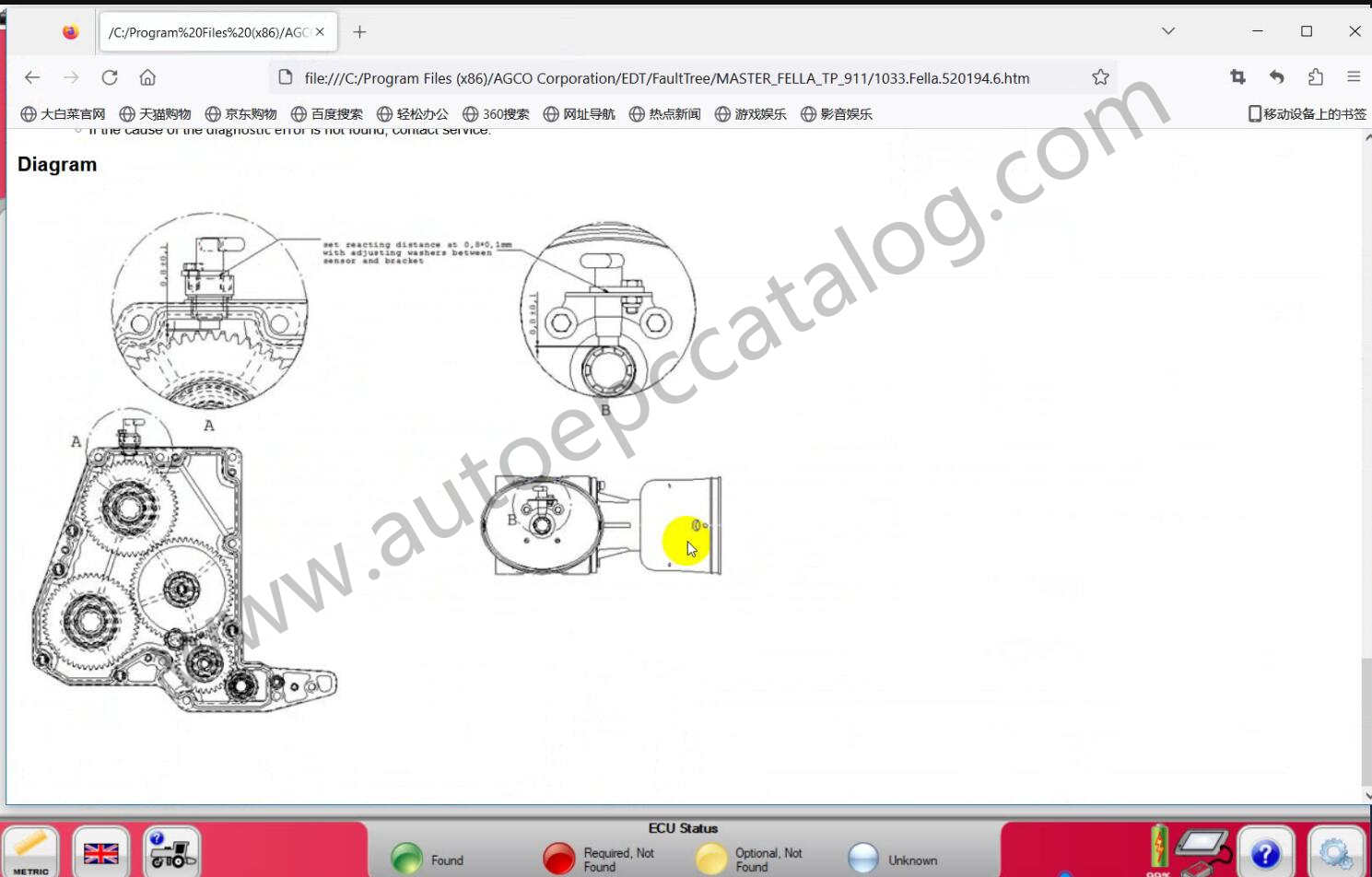

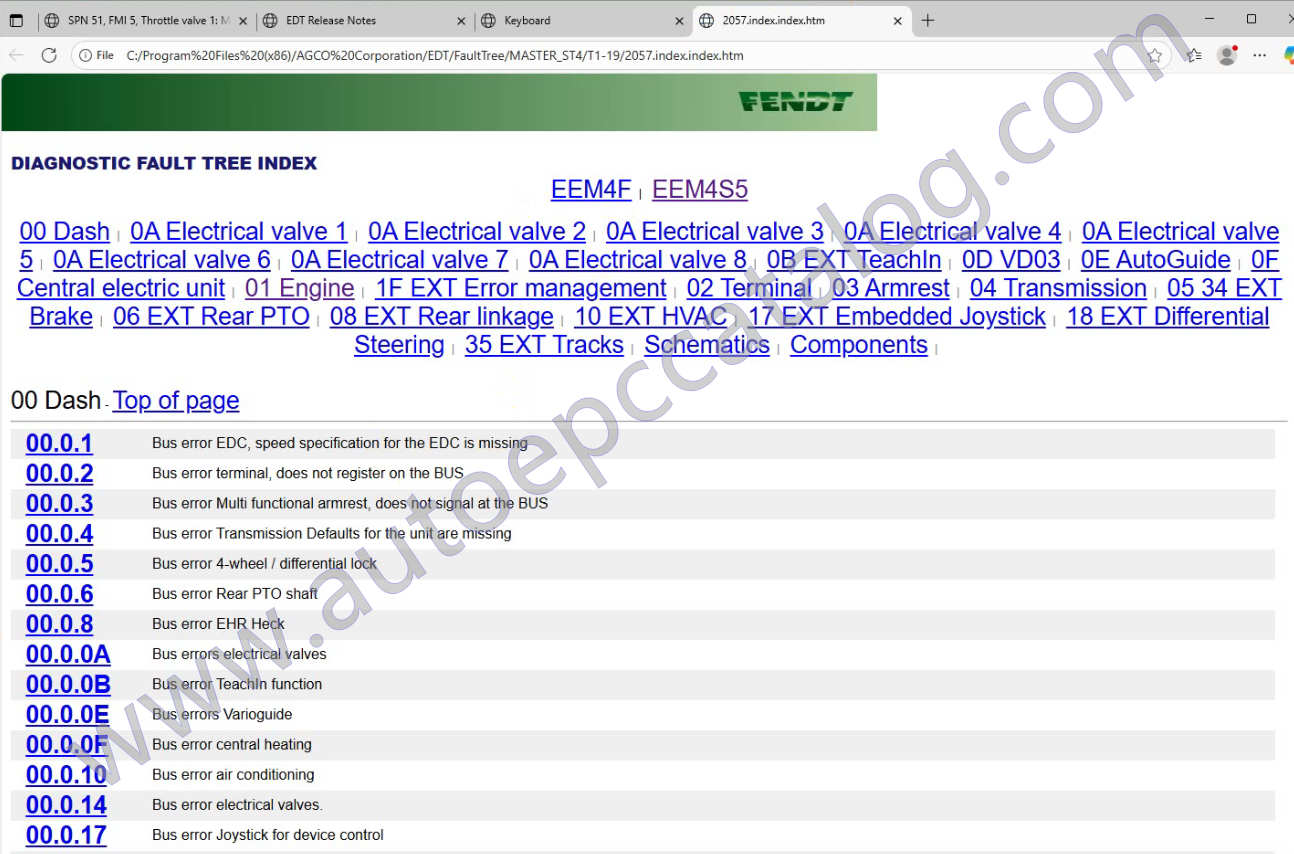

Diagnostic Fault Trees
Engine Sensors Overview
CAN Trace



Calibrations:

– Main Gear Calibration (Versu / Direct / Hitech 5PS)
– Range Gear Calibration (Versu / Direct / Hitech 5PS)
– Hydrostatic Unit (Direct only)
– Speed Sensor Calibration
– F- clutch Calibration
– R-clutch Calibration
– C1-clutch Calibration (Versu / Hitech)
– C2-clutch Calibration (Versu / Hitech)
– C3-clutch Calibration (Versu / Hitech)
– C4-clutch Calibration (Versu / Hitech 5PS)
– Clutch Pedal Calibration
– Powershuttle Adjustments
– Powershift Adjustments (Versu / Hitech)
– Injector Calibration



Configuration

– Save TC1 indexes to EDT
– Load TC1 indexes to EDT
– Update TC1 indexes with latest factory values
– Adjust TC1 indexes
– Adjust Tractor Terminal Indexes
– Reset Tractor Terminal User Settings
– Change the identifier (CAN ID)
– Hydraulic Configuration
– Tractor number
– Valve head management
– VIN Setup
– Cooling Fan Setup
– Engine Service Parameter Configuration
– Use Engine Activation Code
– Bypass Specification Mismatch



Diagnostic Test

– Hydrostatic Unit Test (Direct only)
– Visco Fan Test
– Cylinder Cut-Out Test
– High Pressure Test
– Run-Up Test
– Compression Test
– Actuator Test
– Save & Upload Log





AGCO EDT Electronic Diagnostic 2024.11 Video Show:

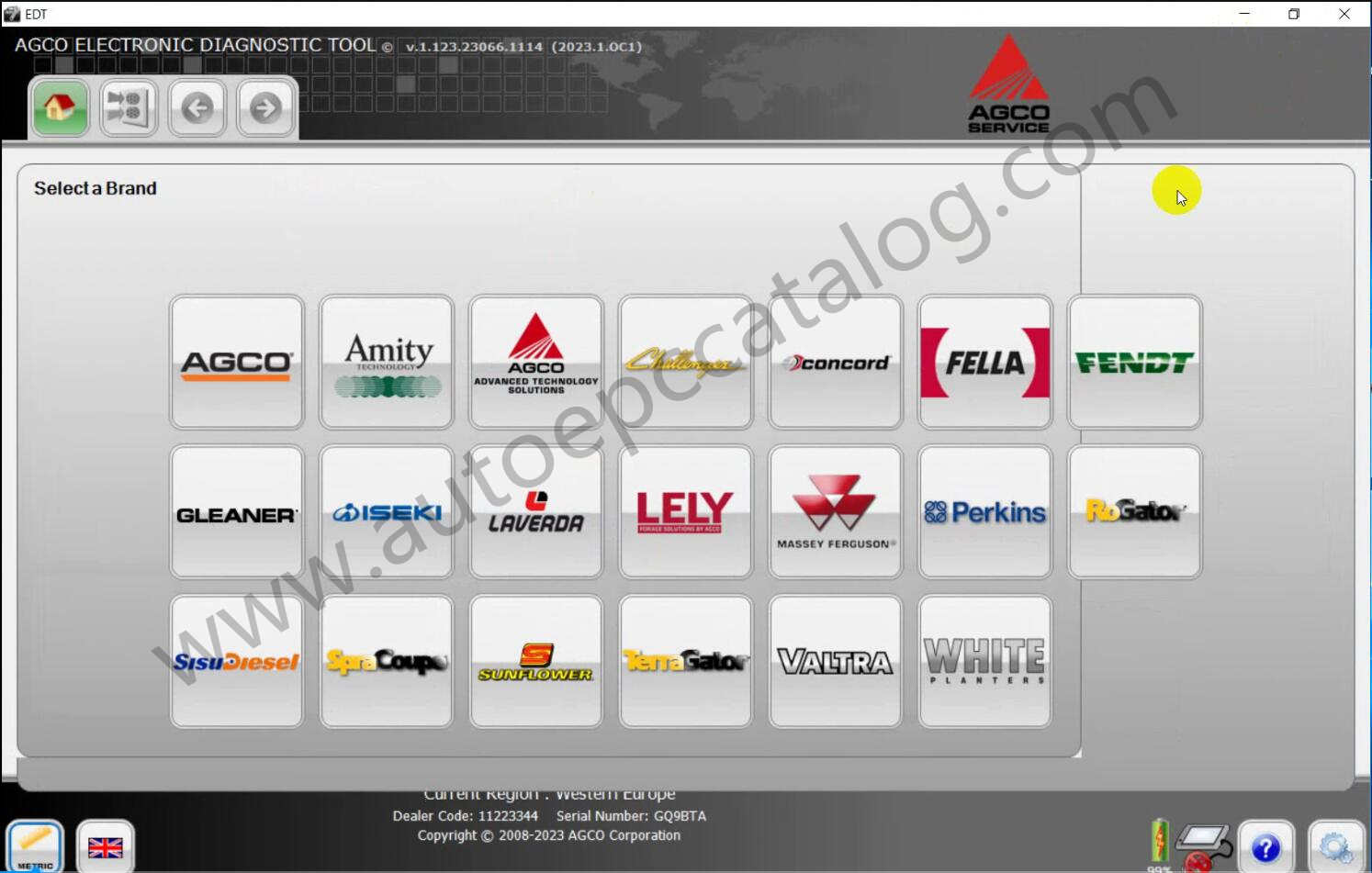

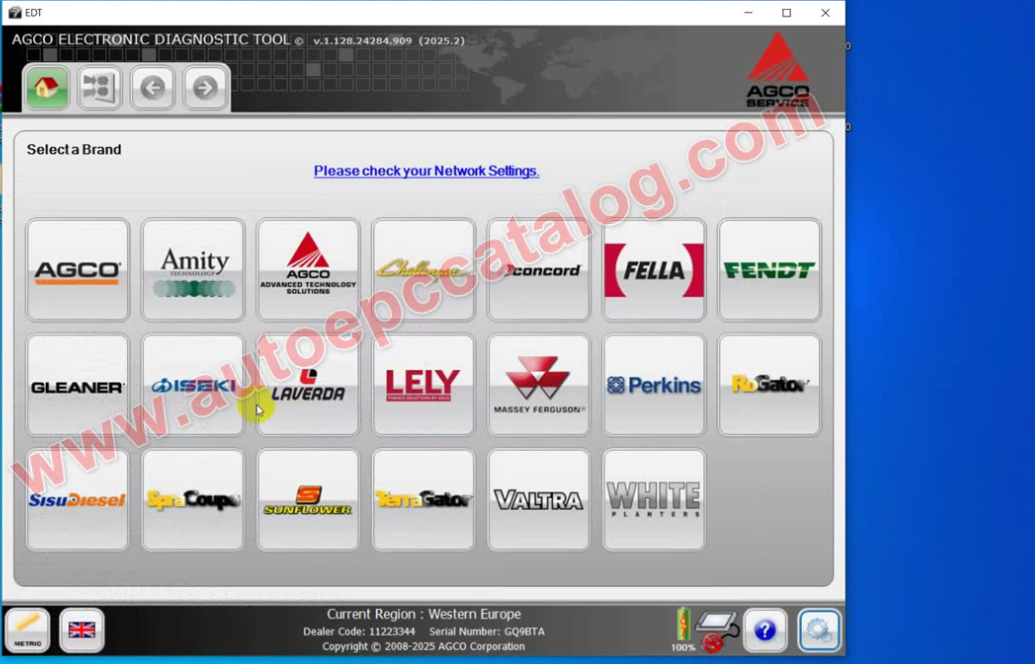

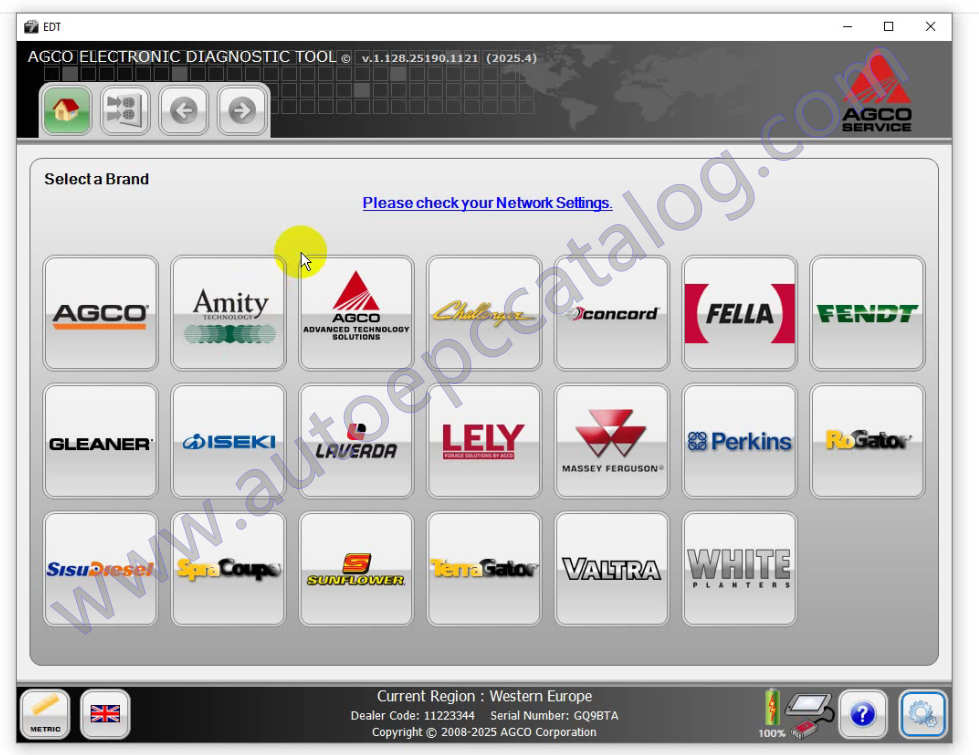

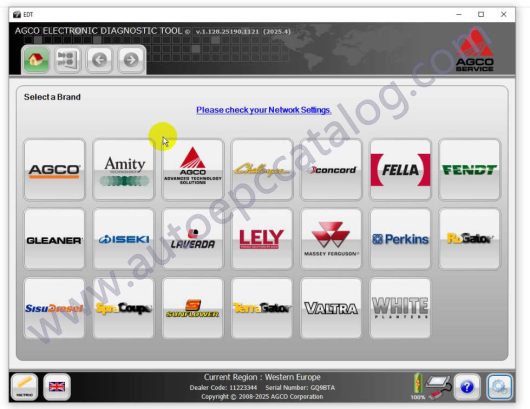

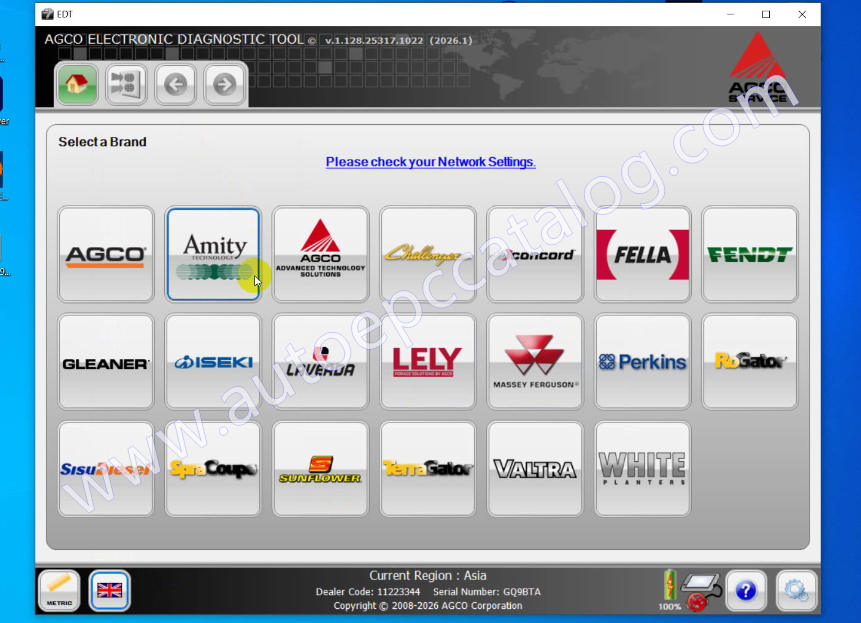

AGCO EDT 2024 Electronic Diagnostic Tool Support Brands:
AGCO
Challenger
FENDT
FELLA
GLEANER
Laverda
Massey Ferguson
RoGator
ISEKI
SISU
SpraCoupe
Sunflower
TerraGator
Valtra
WHITE Planters

Some brands can not work

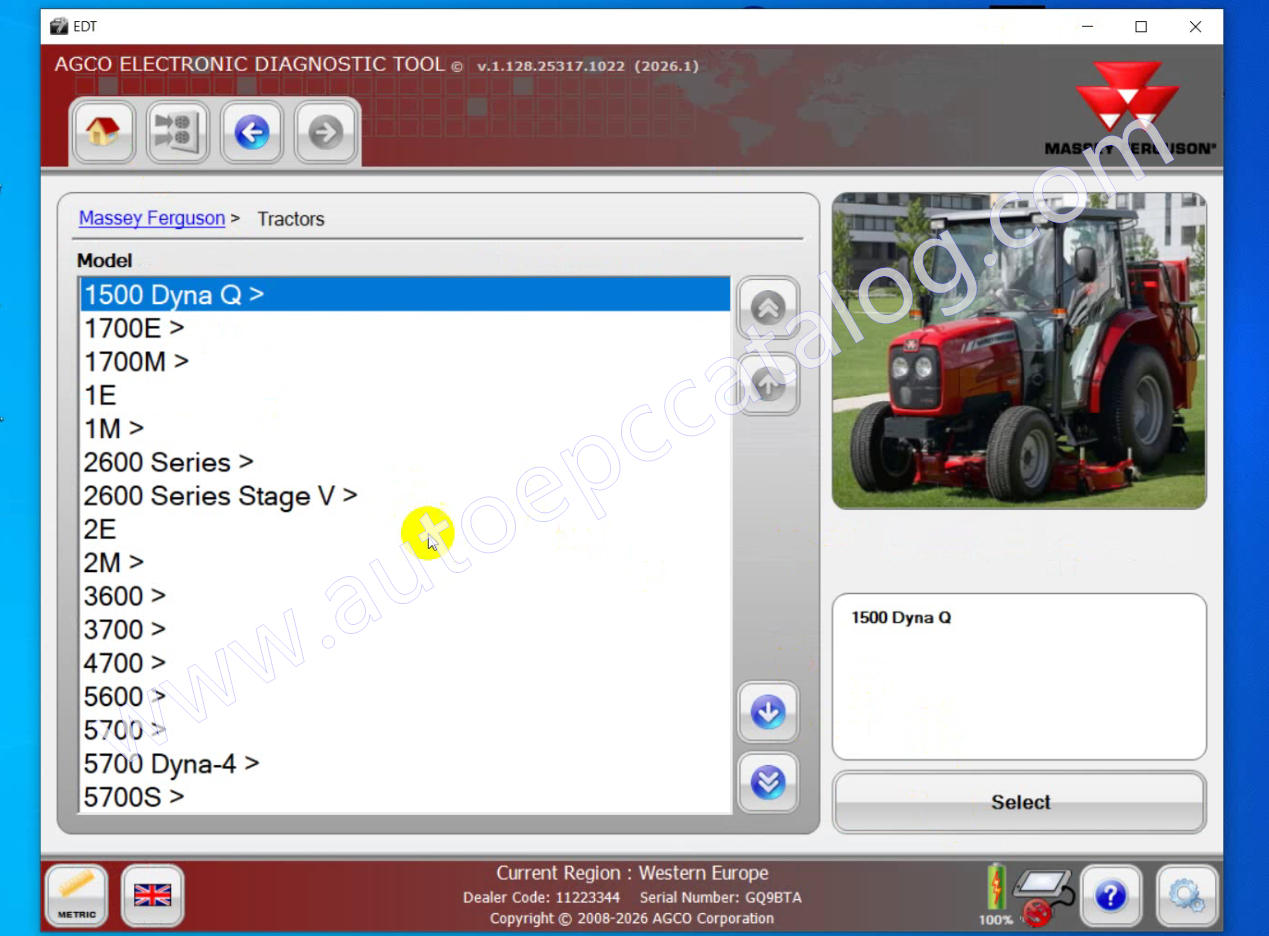

AGCO EDT 2024 Models Working:

2700E
9800_Windrower
AGCOMMAND_Generic
Agritalia
AL4EVO-Series
Amity Air Cart
ANT
Automation
AutoTill
Balers
BC4600
BE1035e
BX155
BX181
BX200
BX215
BX250
BX273
BX275
CEA MBus
CEA_BVSTractor
Centurion
Cerea
Delta
E-Link
FELLA_TP_911
FELLA_TS_12545
FELLA_TS_14055
Fendias
FE_X200_Engine
FE_X300_Engine
Gen2
Generic_System150
H2-16
Header_5300
HiPer AG Universal Support
IDEAL
IDEAL Automation
Iseki
IsekiMF1700
IsekiMF4600
LegacySteering
LegacySubSystemSteering
LelyHibiskus
LelyLW
LelyPT
LelyRP
LelyRP-F
LelyRPC
Lely_Legacy_Hardware
LRT
M200-Series
M300-Series
M400-Series
MF32
MF32SR
MF3700
MF9790
MF9790NA
MF9790_SA
MF_T5
Momentum
MT 789 C
MT 789D
MT 789E
M_PLUS
M_SeriesMY15
OPUS
Phase 2 Axial
Phase0
Planter
Planters_BR
R-Series
RG GP1
RG GP2
RG GP3
RG3
RG300 MY2019
RG300 MY2021
RG300 Series
RG600
RG600 GRV
RG600 MY2016
RG600 MY2016 GRV
RG600 MY2021
RG700
S1-18
S3 Phase 1 Axial
SA_TRACTOR
Series_M_StageV
SGR-1_Vehicle
Sserie
ST4
Sx7
Sx8
Sx9
T7
Tafe
TerraGator 8333 CVT
TG Legacy
TG T3 xx00
TG T3 xx03
TG T4 xx00
TG3
TG835
TG845
V2-21
V219T3
VB230
VG250
VT11
VT16
Windrower
Z12
Z15
Z16
Z2_Z3
Z9



AGCO EDT 2024 Plugin Working:

ACM
AG 150
AG 153
AGCOMMAND
C1000
C2100
C3000
CEATrans_MBus
CEA_Guide
EEM3
EEM4
EEM4F_Diagnostics
EEM4S5
EEM4_C63
EEM4_Final
EOL_Support_Tools
EXT_Audit
FPT
GFX750
HiPerAG
HuscoHydraulics
HVAC
Iseki_T4F
ISOBusCheck
Jax MT Lt Ptn
LCP
LHLink
MAN
MFA
Mitsubishi
NoracUC5
NT03
PVED_CL
SCM
SGR1
Shibaura
SimpsonT4F
TIM
Tractor Bus
ValtraArmrest
VarioGuide
X700_HB
X700_TB



AGCO EDT 2024 Update Release Notes:

Release Notes – 11/15/2024 – Update 2024.5.OC1

EDT NOTES:

EDT Version: 1.128.24284.909

---

Vehicles Affected:

• Massey Ferguson: 197, 235, 265

Vehicle Version:

• 1.36

Software:

• GD – 04.05.07
  • Fixes Rearsteer extend/retract signal commands so it will only be active when in Rearsteer gear range selection. The issue was found to be a part of the software that was triggered when the minor version number was changed from .3 to .4 or greater. This change caused the Rearsteer cylinder coils for extend and retract to become active in all gear ranges instead of just Rearsteer. The bug in the system has been found and removed from software.

---

Release Notes – 11/6/2024 – Update 2024.5

EDT NOTES:

EDT Version: 1.128.24284.909

Enhancements:

• Minor improvements to diagnostic functionality.

---

Vehicles Affected:

• Massey Ferguson: Square Balers: 2224, 2233, 2234, 2234XD, 2244
• Fendt: Square Balers: 990, 1270, 1290, 1290XD, 12130

Vehicle Version:

• 1.32

General:

• Make Massey Ferguson machines available in Africa/Middle East

Diagnostics:

• Add support for all brands of keypads

Calibrations:

• Add options to configure digital knotter position and brake release.

Software:

• EXT-Lite – v01.10.00
  • Work Records names can now include foreign characters when using VTv4 or higher
  • Add option to hide brake release button when this option is not installed through EDT
  • Fix problem with not resetting flake count in some situations
  • Fix lost speed source alarm when only one measurement is missing
  • Fix sending moisture values that are 10 times as big to bale link
  • Fix reading RFID tags
  • Fix sending out bale drop information when using an accumulator

---

Vehicles Affected:

• Challenger: MT540, MT560, MT570, MT580
• Massey Ferguson: 7350, 7370, 7390, 7415
• Valtra: BT150, BT170, BT190, BT210

Vehicle Version:

• 4.86

General:

• A new software version 14.40.000.01.4 is now available for updating GFX-750 and GFX-1060 monitors for tractors.
• Disabled GFX750/1060 for regions outside of South America

Software:

• GFX-750/1060 software version 14.40.000.01.4

Plug-Ins:

• GFX750 version 1.4

---

Vehicles Affected:

• Challenger: 660B made in Brazil, 670B made in Brazil, 680B made in Brazil
• Massey Ferguson: 9695 made in Brazil, 9795 made in Brazil, 9895 made in Brazil
• Valtra: BC6800, BC7800, BC8800

Vehicle Version:

• 1.29

Software:

• AGCO Connectivity Module software version 5.04.04

Plug-Ins:

• Update ACM plugin to version 6.19

---

Vehicles Affected:

• Massey Ferguson: 4690, 5690, 6690
• Valtra**: BC4800, BC5800**

Vehicle Version:

• 3.18

Software:

• AGCO Connectivity Module software version 5.04.04

Plug-Ins:

• Update ACM plugin to version 6.19

---

Vehicles Affected:

• Massey Ferguson: MF9130, MF9350Dry
• Valtra: BS3120H, BS3350H

Vehicle Version:

• 4.6

General:

• Improved the identification of AGI4 and AGS2 receivers in the network scan process.

---

Vehicles Affected:

• Massey Ferguson: MF 6700S Stage 5 Series
• Massey Ferguson: MF 7700S Stage 5 Series

Vehicle Version:

• 3.11

Software:

• New SRC14-34 software V6.15 for Dyna-VT models:
  • P20758 – Fix PTO Auto which was not working if front hitch command is different than Neutral
  • P22189 – Fix DTM status which was not memorized at key ON/OFF/ON
  • P22422 – Fix the float which stayed engaged even if the joystick is in left position

• New SRC14-34 software V6.16 for Dyna-6 models:
  • P20758 – Fix PTO Auto which was not working if front hitch command is different than Neutral
  • P22189 – Fix DTM status which was not memorized at key ON/OFF/ON
  • P22422 – Fix the float which stayed engaged even if the joystick is in left position
  • Fix Headland Shift +/- functionality which was not working since V6.13

• New Stage 5 engine software (49LFTN-D5 & 66LFTN-D5) :
  • P21403 – Change engine rpm at which injection cut to avoid stalling when activating PTO

• ACM
  • GW04 updated to V05.04.04 to support the encrypted WiFi connection
  • GW03 reverted to V05.01.06 which is the latest version compatible with the hardware.

---

Vehicles Affected:

• Massey Ferguson: 2700-4700 Series
• Massey Ferguson: 6700R Series
• Massey Ferguson: Global Series 4700-5700-6700
• Valtra: A100
• Valtra: A100Hitech Series
• Valtra: A4, A4S
• Valtra: A4Hitech Series
• Valtra: AC52.5, AC54.5, AC56.5

Vehicle Version:

• 7.7

Software:

• New Dashboard Conti Cluster v2.14 only for MF models
  • P24325 – Global Series non-RMI hectars counter not working

• New Auto7 App8 TRANS v2.33.00 only for MF models
  • P19661 – GS Harsh engagement with clutch pedal (Auto7)
  • P21541 – Power shuttle lever harsh
  • Bug Fix : PTO can disengages without error code due to false detection of Speed change

• New Engine Software for Tier4F 3 cylinder engines (33AWFC):
  • Update calibration to improve behavior at initialization and prevent rail pressure overshoots during engine start

• New ACM software v05.04.04:
  • Added WiFi Password to ACM
  • Many fixes

• New Engine Software for Tier4F 3 cylinder engines (33AWFC):
  • Update calibration to improve behavior at initialization and prevent rail pressure overshoots during engine start

• New software to update GFX-1060 monitors.

---

Vehicles Affected:

• Challenger: Legacy combines with AGCO Power Tier3 engines
• Fendt: Legacy combines with AGCO Power Tier3 engines
• Laverda: Legacy combines with AGCO Power Tier3 engines
• Massey Ferguson: Legacy combines with AGCO Power Tier3 engines

General:

• Fault Trees engines updated.

---

Vehicles Affected:

• Fendt: 8380P, 8380P AL, 8410P, 8410P AL, 9490X, 9490X AL
• Massey Ferguson: 7380, 7380 AL, 7382, 7382 AL, 9380, 9380 AL

Vehicle Version:

• 2.25

General:

• Added source address for MAF sensor automated version detection.

Software:

• Engine software spec. 84701 ver. ACX257104B_1
• Engine software spec. 84739 ver. ACX257100B_1
• Engine software spec. 84716 ver. ACX257103B_1
• Engine software spec. 84738 ver. ACX257099B_1
• Engine software spec. 98709 ver. ACX257107B_1

Plug-Ins:

• AP T4F ver. 6.23
• MFA ver. 8.10

---

Vehicles Affected:

• Challenger: MT600E with TMC Display
• Massey Ferguson: 8700 with Datatronic 5 Series
• Massey Ferguson: MF 8700S Series
• Valtra: S4 with SmartTouch Display Series

Vehicle Version:

• 7.52

General:

• Add MF8727 Tier2 and S274 Tier2 in South America region

Software:

• New SRC14-34 software V6.14 for MF and Challenger models:
  • Fix Pick Up Hitch which was not working properly since V6.14
  • P20758 – Fix PTO Auto which was not working if front hitch command was different than Neutral
  • P22189 – Fix DTM status which was not memorized at key ON/OFF/ON

• New Tier4F engine software for 2nd Turbo engine (84 AWF) :
  • New MAF calibration to enable use new mass air flow sensor

• New Stage5 engine software (84 LFVC) :
  • Fix the air mass sensor offset zeroing issue.

• ACM
  • GW04 updated to V05.04.04 to support the encrypted WiFi connection
  • GW03 reverted to V05.01.06 which is the latest version compatible with the hardware.

---

Vehicles Affected:

• ATS: HiPer AG

Vehicle Version:

• 1.10

---

Vehicles Affected:

• Fendt: IDEAL Combines
• Massey Ferguson: IDEAL Combines

Vehicle Version:

• 1.107

General:

New features:

• Chaff Spreader Speed Sensor (If equipped): User can see the chaffer speed at the bottom of the “Residue Discharge” page. With this feature enabled and speed sensor installed user will get an alarm when the chaff spreader speed drops below 95 RPM, a class 3 alarm shall be generated: “Chaff spreader plugged. Turn Off thresher”
• Hillside audible alarm updates: The TI Headland IDEAL feature will no longer be an optional feature. From this software release and on TI Headland IDEAL will be enabled by default on all machines.
• Updates to engine cooling fan pitch control: Cooling fan pitch has been updated to achieve max pitch angle at 88°C hydraulic oil temp. from a previous temperature of 93°C, to improve oil cool down process.
• MAN engine torque curve updates: Updated standard torque curve to match boost torque curve at 1850 RPM and below on all MAN engines.

Repairs:

• WAS calibration improvements for IDEAL Drive: After completion of the WAS calibration on an IDEAL Drive machine, operator will be prompted with the following text: “Key off for at least 5 seconds, key on and select “Update WAS Neutral Position” to complete Neutral Calibration”
• Chopper clutch disengagement: Fixed an issue where the chopper clutch would not disengage if machine was turned off while chopper clutch was engaged.
• Data transfer operation via EDT updates: Updates has been made to the backup and restore logic to be more reliable.
• Auto Header Tilt updates: New controller for automatic header tilt. Operator will notice a smoother and more responsive tilt control.
• Steering valve failed to power down :Fixed issue where steering valve failed to power down when operator attempted to go into road mode (FC 240.520817.31).

Software:

• ACM ver. 5.4.4
• ACM config ver. v12.1
• EXT ver. CR.F.13.000.15.426110
• NT01 ver. 13_0_24257
• GQS ver. 1.0.8.3013
• GDM ver. 13.01
• Engine software spec. 98730 ver. ACX314682A_1
• Engine software spec. 98732 ver. ACX314684A_1

Plug-Ins:

• ACM ver. 6.19
• AP T4F ver. 6.23
• MFA ver. 8.10

---

Vehicles Affected:

• Massey Ferguson: 1E, 1M, 2E, 2MSeries

Vehicle Version:

• 2.40

General:

• Introduction of the 1E/M and 2E/M series tractors into the North American and Australia, New Zealand, and Japanese markets.

---

Vehicles Affected:

• Massey Ferguson: 4609M, 4610M, and 4610M-HC

Vehicle Version:

• 2.16

Software:

• Update engine files.

---

Vehicles Affected:

• Fendt: C-Series 2015: 5275CA, 5275CPLA, 6335CA, 6335CPLA
• Fendt: L-Series 2015: 5255L, 6275L
• Laverda: M300 Series 2015: M300A, M310A
• Laverda: M400 Series 2015: M400A, M400LCA, M400LCIA, M410A, M410LCA
• Massey Ferguson: ACTIVA S Series 2015: 7345S, 7347S
• Massey Ferguson: BETA Series 2015: 7360A, 7360PLA, 7370A, 7370PLA

Vehicle Version:

• 2.37

General:

• Added source address for MAF sensor automated version detection.

Software:

• Engine software spec. 84715 ver. ACX257101A_1
• Engine software spec. 84740 ver. ACX257105A_1
• Engine software spec. 84722 ver. ACX257102A_1
• Engine software spec. 84751 ver. ACX257106A_1

Plug-Ins:

• AP T4F ver. 6.23
• MFA ver. 8.10

---

Vehicles Affected:

• Massey Ferguson: MF 3700 Series
• Massey Ferguson: MF 3X Series

Vehicle Version:

• 1.81

Plug-Ins:

• New FPT Stage5 Plugin (V1.6):
  • Add EGR Actuator test
  • Add Throttle Valve Actuator test
  • Add SCR Emptying test
  • Add SCR Dosing test

---

Vehicles Affected:

• Fendt: Momentum Large

Vehicle Version:

• 2.13

General:

• Region: North America, Eastern Europe, Australia
• Updates:
  • Added VCT shut down alarms
    • Sensor error alarm
    • Exceeded max height alarm
  • Added ISOBUS Shortcut Button (ISB) functionality
    • ISB pressed alarm
  • Added Weight transfer alarm
    • Loadcell error alarm
  • Tire Inflation System Updates
    • Added Tire Inflation alarms
      • Driving to fast for weight and speed
      • Speed Sensor Error
      • Loadcell Error
      • Leak Detected
      • Tire Pressure Too Hhigh
      • Pressure Sensor Error
      • Inlet Pressure Too High
    • Update Tire Inflation UI meaning
      • Red is underinflated for conditions
      • Grey is within 5% of target
      • Yellow is over 15% of target (not at most agronomic pressure but ok to operate)
    • Added max speed target for current weight and pressure
    • Manual mode update
      • Automatically increase pressure if needed to meet load/speed conditions.
      • Will not decrease pressure after it increased it.
    • Do not exceed min pressure update
      • Resets based on lifted weight
    • Diagnostic updates
      • Logs underinflated hours in both road and field mode
      • Logs total hours since 2.05 software update
  • Added machine geometry adjustments
    • Row spacing
    • Rows/section
    • Offset from center
    • Axle distance from hitch
    • Seeed exit from hitch
  • AutoLift and mapping improvements
    • Support for condensed workstate vDrive messages
    • Compatible with 2025.1 2020 software only
  • Added Task Controller/ ICM diagnostic page
    • Shows ICM section states and TC section states

Software:

• Momentum Large V02.05.00

---

Vehicles Affected:

• Challenger: RG900C, RG 1100C, RG 1300C, RG1300C HT
• RoGator: RG900C, RG 1100C, RG 1300C, RG1300C HT

Vehicle Version:

• 2.34

General:

• Improved identification of ACM hardware and software on Network Scan

Diagnostics:

• Fixed links to electrical schematics on the four “Liquid Valve Location” diagnostic pages

Configuration:

• Corrected MFA EEPROM update process in the normal MFA software flash routine and when selecting “restore calibrations” using the engineering function “Write MFA eeprom file”. This change allows a technician to complete an MFA replacement job without contacting service for a special MFA flash authorization.

Software:
ACM (Ver 05.03.02) – GW04 Hardware ONLY

• Increased stability and significant technical improvements.
• Fixed bug with when ACM would cache last uploaded secure package – edge cases where ACM would no longer accept config packages (if support teams upload a wrong file over the Fuse Page, then ACM will no longer accept any package).
• Fixed bug with calculation of signal strength- ACM no longer display 116% signal strength on the Fuse Page, logs or Diagnostic terminal.
• Fixed bug with date time getting shifted – invalid gps lock would set previous day time, resulting in erroneous data being uploaded to the cloud. No more time stamp issues or invalid time on data.

ACM (v05.01.06) – GW03 Hardware ONLY

• Last software update for older GW03 hardware.

ACM – idConfig (RG3_V24_11/13/2023) – available through wireless ACM update

• Added conditions for TRANS-MODE_Appl UID 2684413188 to correctly indicate Street Mode

ACM – telemetryConfig (Application_V14_04/02/2024) – available through wireless ACM update

• Removed UID 3489661044 TOTAL_AREA_DATA_LOGGER because this value is not calculated correctly on the machine
• Added WORK ON UID 2147483789 to correctly determine machine state

ACM – statusCalcConfig (Application_V3_9/30/2021) – available through wireless ACM update

• Updated to common file

WSM New Leader Spreader Module (v2.17.0.0):
New Leader Spreader Swath Module (v2.7.0.0):

• Updated feedgate control loop
• Updated advanced parameter default values

Raven Viper4+ (v23.4.1.11):

• Lock up due to service tool issue related to wifi drops
• Raven legacy CAN ECU’s not working (Accuboom, Autoboom, etc)
• Slow down due to accessing Scout widget lists
• Single Product Widget assignment staying assigned on power cycle
• AGsync fixes
• Large Time jumps due to startup and GPS/RS1 startup

Raven RCM-U – Firmware – 24.3.0.47
New Features

• Ability to set individual min PWM% for left & right conveyors

Defect Resolution

• Fixed conversion for bin level sensor values received over CAN

Raven RS1 (v24.1.1.6):
New features

• Added Dynamic Height Adjustment and communication to VSN
• Added DirectSteer integration
• Added Support for Fendt Joystick direction sense

Enhancements

• Add Verizon Checkbox to toggle cellular communication
• Add a help menu entry for wheel speed compensation

Defect Resolution

• Fix for Terragator B not paring with Sauer Valve
• Fix target wheel angle readout not updating in health
• Solved the issue where the ECU’s are Up to Date dialog would randomly pop up
• Bug fixes that improve Slingshot Pool stability

Raven VSN (v23.4.1.12):

• Camera Row guidance failures upon power cycle due to dynamic height software issue
• Row guidance Radar programming update causing UT lockup

Plug-Ins:
Updated MFA plugin to 8.10

• Corrected MFA EEPROM update process – Added a Restore_Rogator enum to the Plugin Parameter eRestoreParamKalib so the R9, RG3, R521, and TG3 will be able to load the “Parameters for analog joystick” from the base eeprom file.

Updated ACM plugin to 6.19

• Improved identification of ACM hardware and software versions
• EDT chooses which software to flash based on hardware version of connected ACM
• Corrected issue with ACM replacement process

---

Vehicles Affected:

• Massey Ferguson: 5700 Dyna-4 Tractors
• Valtra: AC71.5

Vehicle Version:

• 2.60

Software:

• New Engine Software for Tier4F 3 cylinder engines (33AWFC):
  • Update calibration to improve behavior at initialization and prevent rail pressure overshoots during engine start

• New Transmission and Linkage software V1.19.0 (MF only):
  • P20842 – Fix Rear linkage that continued to move after engine stall / restart

---

Vehicles Affected:

• ATS: SP008-Wiper-Retrofit

Vehicle Version:

• 1.13

General:

• Calibration stability update

Diagnostics:

• GUI Chore
  • Increased size of textboxes to fit all languages
  • Updated texttables for more consistency

Calibrations:

• Refactored calibration timing to avoid false calibration aborts

Configuration:

• N/A

Diagnostic Tests:

• N/A

Software:

• N/A

Diagnostic Trouble Codes:

• N/A

Plug-Ins:

• N/A

---

Vehicles Affected:

• Valtra: S3 Series
• Valtra: S4 Series

Vehicle Version:

• 8.71

Software:

• New Tier4F engine software which sets the MAF calibration to enable use new mass air flow sensor

---

Vehicles Affected:

• Gleaner: S96, S97, S98

Vehicle Version:

• 5.84

General:

• Software and plug-in update

Software:

• ACM ver. 5.4.4
• EXT ver. CT.F.25.000.07.419716
• NT01 ver. 24.06.24225
• NT01 eeprom ver.01_17_23_2

Plug-Ins:

• ACM ver. 6.19
• CEA Guide ver. 8.33
• AP T4F ver. 6.23
• MFA ver. 8.10

---

Vehicles Affected:

• Challenger: TG7300C, TG8300C, TG8400C, TG9300C
• TerraGator: TG7300C, TG8300C, TG8400C, TG9300C

Vehicle Version:

• 1.104

Configuration:

• Corrected MFA EEPROM update process in the normal MFA software flash routine and when selecting “restore calibrations” using the engineering function “Write MFA eeprom file”. This change allows a technician to complete an MFA replacement job without contacting service for a special MFA flash authorization.
• Added the ability to reset the dashboard hours.

Software:

WSM New Leader Spreader Module (v2.17.0.0):
New Leader Spreader Swath Module (v2.7.0.0):

• Updated feedgate control loop
• Updated advanced parameter default values

Raven Viper4+ (v23.4.1.11):

• Lock up due to service tool issues related to WIFI drops
• Raven legacy CAN ECUs not working (Accuboom, Autoboom, etc)
• Slow down due to accessing Scout widget lists
• Single product widget assignment staying assigned on power cycle
• AGsync fixes
• Large time jumps due to startup and GPS/RS1 startup

Raven RCM-U – Firmware (v24.3.0.47)
New features

• Ability to set individual min PWM% for left & right conveyors

Defect Resolution

• Fixed conversion for bin level sensor values received over CAN

Raven RS1 (v24.1.1.6):
New features

• Added Dynamic Height Adjustment and communication to VSN
• Added DirectSteer integration
• Added Support for Fendt Joystick direction sense

Enhancements

• Add Verizon Checkbox to toggle cellular communication
• Add a help menu entry for wheel speed compensation

Defect Resolution

• Fix for Terragator B not paring with Sauer Valve
• Fix target wheel angle readout not updating in health
• Solved the issue where the ECU’s are Up to Date dialog would randomly pop up
• Bug fixes that improve Slingshot Pool stability

Plug-Ins:
Updated MFA plugin to 8.10

• Corrected MFA EEPROM update process – Added a Restore_Rogator enum to the Plugin Parameter eRestoreParamKalib so the R9, RG3, R521, and TG3 will be able to load the “Parameters for analog joystick” from the base eeprom file.

Updated ACM plugin to 6.19

• Corrected issue with ACM replacement process

---

Vehicles Affected:

• Gleaner: T61, T71, T81

Vehicle Version:

• 0.18

General:

• First EDT release for new CT-25M series

Software:

• ACM ver. 5.4.4
• YMM ver. 1.6.0.0
• PVED-CC ver. 1.65
• SPM ver. 14101$A.S19
• EXT ver. 25.000.07
• NT01 ver. 24_06_24255
• NT01 eeprom ver. 01_17_23_2
• GDM ver. CT25_24_0501
• CEDC ver. 4.9
• HCDM1 ver. 2.0
• HCDM2 ver. 2.0
• VMM1 ver. 0.3
• VMM2 ver. 0.3
• VD0x ver. B.01.039.00
• HVAC ver. 1.0.10.200
• LCP ver. 0.50
• MFA ver. 2.92
• T4F Engine software spec. 84700 ver. ACX4564230
• T4F Engine software spec. 98700 ver. ACX351690A_1
• T4F Engine software spec. 98701 ver. ACX351689A_1
• LRC Engine software spec. 84721 ver. ACX4564260
• LRC Engine software spec. 98714 ver. ACX351693A_1
• LRC Engine software spec. 98713 ver. ACX351694A_1

Plug-Ins:

• ACM ver. 6.19
• CEA Guide ver. 8.33
• AP T4F ver.6.23
• HVAC ver. 8.4
• LCP ver. 8.7
• MFA ver. 8.10

---

Vehicles Affected:

• Valtra: F Series

Vehicle Version:

• 1.8

General:

• Add Front axle suspension support (Network scan, Diagnostic, DTC)
• Add Electronic linkage support (DTC only for the moment)

Software:

• New TCU software for Stage5 models
• Add Stage5 engine software

Plug-Ins:

• New FPT Stage5 plugin:
  • Add engine diagnostic tests
  • Add flash of software functionality

---

Vehicles Affected:

• Valtra: BH G4, BH214 Hitech, BH224 Hitech

Vehicle Version:

• 3.12

General:

• New software version 14.40.000.01.4 is now available for updating GFX-750 and GFX-1060 monitors for tractors.
• Disabled GFX750/1060 for regions outside of South America

Software:
GFX-1060 SW 14.40.000.01.4

• AGCO Connectivity Module software version 5.04.04

Plug-Ins:

• GFX750 version 1.4

---

Vehicles Affected:

• Valtra: T4-series 1A7 / 1B8, N4-series 1B7 / 1C8

Vehicle Version:

• 1.109

Software:

• Software package 1.14.0
  • Direct TC1 application
    • Fix for PTO pulling defect
    • Fix for clutch pedal slipping problem
    • Fix for engine RPM swinging after start
  • Versu TC1 application
    • Fix for clutch pedal slipping problem

---

Vehicles Affected:

• Challenger: MT600E Series
• Massey Ferguson: 8700 Series

Vehicle Version:

• 6.61

Software:

• New Tier4F engine software (84 AWF new turbo & 84 AWF new turbo with DEF quality sensor) :
  • New MAF calibration to enable use new mass air flow sensor

---

Vehicles Affected:

• Challenger: MT400E Series
• Challenger: MT500E Series
• Iseki: i5700 Series
• Iseki: i6700 Series
• Iseki: i7700 Series
• Massey Ferguson: 5700S Series
• Massey Ferguson: 5700SL Series
• Massey Ferguson: 6700S Series
• Massey Ferguson: 7700 Made in Brazil Series
• Massey Ferguson: 7700 Series
• Massey Ferguson: 7700S Series
• Valtra: T195-250 Series

Vehicle Version:

• 8.24

Software:

• New Tier4F engine software :
  • P21403 – Change engine rpm at which injection cut to avoid stalling when activating PTO

• New Tier3 engine software :
  • P21403 – Change engine rpm at which injection cut to avoid stalling when activating PTO

• ACM
  • GW04 updated to V05.04.04 to support the encrypted WiFi connection
  • GW03 reverted to V05.01.06 which is the latest version compatible with the hardware.

---

Vehicles Affected:

• Challenger: MT400D Series
• Challenger: MT500 D Series
• Iseki: i6600 Series
• Iseki: i7600 Series
• Massey Ferguson: 6600 Series
• Massey Ferguson: 7600 Series

Vehicle Version:

• 10.91

Software:

• New Tier2 engine software (66LFEN)
  • P21403 – Change engine rpm at which injection cut to avoid stalling when activating PTO

---

Release Notes – 8/30/2024 – Update 2024.4.OC1

EDT NOTES:

EDT Version: 1.127.24141.1181

---

Vehicles Affected:

• Massey Ferguson: Square Balers: 2224, 2233, 2234, 2234XD, 2244
• Fendt: Square Balers: 990, 1270, 1290, 1290XD, 12130

Vehicle Version:

• 1.30

General:

• General bugfix release

Diagnostics:

• Update EDT to support new baler software
• Fixed machine options label, parking brake is now indicated correctly

Softwaree:

• EXT-Lite – v01.09.01
  • Implement debounce on bale drop sensor
  • Manual load control functions are now turned off immediately when their softkey is released
  • Fix for moisture values on Infotrac being displayed as 10 times higher
  • Fix for moisture-only Harvest Tec systems warning setting be multiplied by 10
  • Accumulator status elements added to baler UI
  • Downgrading software will result in a reset of machine options, these can then be reset using EDT
• ACM – v05.04.04
